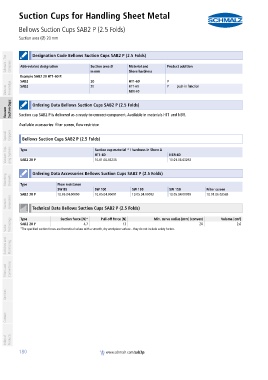

Suction Cups for Handling Sheet Metal
Bellows Suction Cups SAB2 P (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) 20 mm PA01019111_inh_EN.pdf

container
Designation Code Bellows Suction Cups SAB2 P (2.5 Folds)
Schmalz - The Company container Abbreviated designation Suction area Ø Material and Product addition

Example SAB2 20 HT1-60 P: in mm Shore hardness P
20
HT1-60
SAB2
Vacuum Knowledge container SAB2 20 HT1-60 P push-in function
NBR-60

Ordering Data Bellows Suction Cups SAB2 P (2.5 Folds)
Vacuum Suction Cups Suction cup SAB2 P is delivered as a ready-to-connect-component. Available in materials HT1 and NBR.
container
Available accessories: filter screen, flow restrictor

Special Grippers container Bellows Suction Cups SAB2 P (2.5 Folds)

Vacuum Grip- ping Systems container Type Suction cup material * / hardness in Shore A NBR-60
HT1-60
10.01.06.03263
10.01.06.03235
SAB2 20 P
container Ordering Data Accessories Bellows Suction Cups SAB2 P (2.5 Folds)
Mounting Elements container Type Flow resistance

SW 80 SW 100 SW 130 SW 150 Filter screen
SAB2 20 P 10.05.04.00090 10.05.04.00091 10.05.04.00092 10.05.04.00093 10.01.06.02565
Vacuum Generators container Technical Data Bellows Suction Cups SAB2 P (2.5 Folds)

container Type Suction force [N]* Pull-off force [N] Min. curve radius [mm] (convex) Volume [cm³]
Valve Technology SAB2 20 P 4.7 13 20 2.6
*The specified suction forces are theoretical values with a smooth, dry workpiece surface - they do not include safety factors
Switches and Monitoring

Filters and Connections

Services

Contact

Index of Products

180 www.schmalz.com/sab2p
