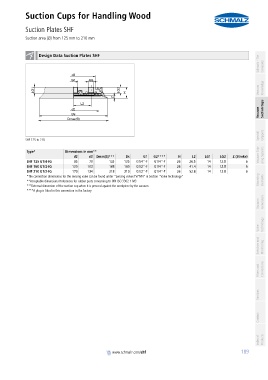

Suction Cups for Handling Wood
Suction Plates SHF
PA01019111_inh_EN.pdf Suction area (Ø) from 125 mm to 210 mm PA01019111_inh_EN.pdf

container

container Design Data Suction Plates SHF Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SHF 125 to 210

container
Type* Dimensions in mm**
d2 d3 Dmax(S)*** Ds G1 G2**** H L2 LG1 LG2 Z (Stroke) Vacuum Grip- ping Systems
SHF 125 G1/4-IG 85 70 133 125 G1/4"-F G1/4"-F 26 26.5 14 12.8 6
SHF 160 G1/2-IG 120 103 168 160 G1/2"-F G1/4"-F 26 41.4 14 12.8 6
SHF 210 G1/2-IG 170 134 218 210 G1/2"-F G1/4"-F 26 52.8 14 12.8 6
*The connection dimensions for the sensing valve can be found under "Sensing valves TV/TVN" in Section "Valve technology"
**Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3 Mounting Elements
***External dimension of the suction cup when it is pressed against the workpiece by the vacuum
****A plug is fitted in this connection in the factory
