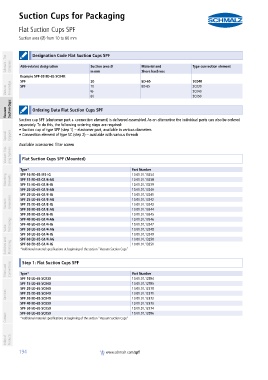

Suction Cups for Packaging
Flat Suction Cups SPF
PA01019111_inh_EN.pdf Suction area (Ø) from 10 to 60 mm PA01019111_inh_EN.pdf

container
Designation Code Flat Suction Cups SPF
Schmalz - The Company container Abbreviated designation Suction area Ø Material and Type connection element

Example SPF-20 ED-65 SC040: in mm Shore hardness SC040
SPF
20
ED-65
Vacuum Knowledge SPF 10 ED-65 SC030
SC040
to
60 SC050
Vacuum Suction Cups container Ordering Data Flat Suction Cups SPF

Suction cup SPF (elastomer part + connection element) is delivered assembled. As an alternative the individual parts can also be ordered
container
separately. To do this, the following ordering steps are required:
• Suction cup of type SPF (step 1) – elastomer part, available in various diameters
Special Grippers • Connection element of type SC (step 2) – available with various threads

Available accessories: filter screen
Vacuum Grip- ping Systems container Flat Suction Cups SPF (Mounted)

container
Type* Part Number
Mounting Elements SPF 10 ED-65 M5-IG 10.01.01.13254
SPF 15 ED-65 G1/8-AG
10.01.01.13238
SPF 15 ED-65 G1/8-IG
10.01.01.13239
SPF 20 ED-65 G1/8-AG 10.01.01.13240
SPF 20 ED-65 G1/8-IG 10.01.01.13241
Vacuum Generators SPF 25 ED-65 G1/8-AG 10.01.01.13242
10.01.01.13243
SPF 25 ED-65 G1/8-IG
SPF 30 ED-65 G1/8-AG 10.01.01.13244
SPF 30 ED-65 G1/8-IG 10.01.01.13245
SPF 40 ED-65 G1/4-AG
10.01.01.13246
Valve Technology SPF 40 ED-65 G1/4-IG 10.01.01.13247
10.01.01.13248
SPF 50 ED-65 G1/4-AG
SPF 50 ED-65 G1/4-IG 10.01.01.13249
Switches and Monitoring SPF 60 ED-65 G1/4-IG 10.01.01.13251
10.01.01.13250
SPF 60 ED-65 G1/4-AG
*Additional material specifications at beginning of the section "Vacuum Suction Cups"
container Step 1: Flat Suction Cups SPF
Filters and Connections container Type* Part Number

SPF 10 ED-65 SC030 10.01.01.12894
SPF 15 ED-65 SC040 10.01.01.12895
SPF 20 ED-65 SC040 10.01.01.12370
Services SPF 25 ED-65 SC040 10.01.01.12371
10.01.01.12372
SPF 30 ED-65 SC040
SPF 40 ED-65 SC050 10.01.01.12373
SPF 50 ED-65 SC050 10.01.01.12374
Contact SPF 60 ED-65 SC050 10.01.01.12896
*Additional material specifications at beginning of the section "Vacuum Suction Cups"

Index of Products

194 www.schmalz.com/spf
