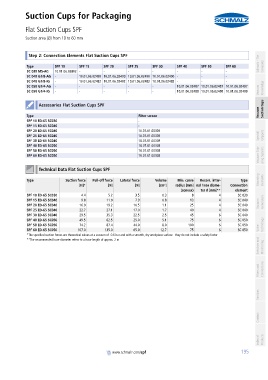

Suction Cups for Packaging
Flat Suction Cups SPF
PA01019111_inh_EN.pdf Suction area (Ø) from 10 to 60 mm PA01019111_inh_EN.pdf

container

container Step 2: Connection Elements Flat Suction Cups SPF Schmalz - The
Type SPF 10 SPF 15 SPF 20 SPF 25 SPF 30 SPF 40 SPF 50 SPF 60 Company
SC 030 M5-AG 10.01.06.02802 - - - - - - -
SC 040 G1/8-AG - 10.01.06.02490 10.01.06.02490 10.01.06.02490 10.01.06.02490 - - -
SC 040 G1/8-IG - 10.01.06.02482 10.01.06.02482 10.01.06.02482 10.01.06.02482 - - -
SC 050 G1/4-AG - - - - - 10.01.06.02487 10.01.06.02487 10.01.06.02487 Knowledge
SC 050 G1/4-IG - - - - - 10.01.06.02488 10.01.06.02488 10.01.06.02488 Vacuum

container
Accessories Flat Suction Cups SPF Suction Cups
Vacuum
container
Type Filter screen
SPF 10 ED-65 SC030 -
SPF 15 ED-65 SC040 -
SPF 20 ED-65 SC040 10.07.01.00309
SPF 25 ED-65 SC040 10.07.01.00309 Special Grippers
SPF 30 ED-65 SC040 10.07.01.00309
SPF 40 ED-65 SC050 10.07.01.00308
Vacuum Grip- ping Systems
SPF 50 ED-65 SC050 10.07.01.00308
SPF 60 ED-65 SC050 10.07.01.00308

container
Technical Data Flat Suction Cups SPF

container
Type Suction force Pull-off force Lateral force Volume Min. curve Recom. inter- Type Mounting Elements
[N]* [N] [N] [cm³] radius [mm] nal hose diame- Connection
(convex) ter d [mm]** element
SPF 10 ED-65 SC030 4.4 5.2 3.5 0.3 8 4 SC 030
SPF 15 ED-65 SC040 9.8 11.0 7.9 0.8 13 4 SC 040 Generators
SPF 20 ED-65 SC040 16.0 19.2 10.5 1.1 25 4 SC 040 Vacuum
SPF 25 ED-65 SC040 22.7 27.1 17.0 1.7 40 4 SC 040
SPF 30 ED-65 SC040 29.5 35.3 22.5 2.5 45 6 SC 040
SPF 40 ED-65 SC050 49.5 62.5 25.0 5.1 75 6 SC 050
SPF 50 ED-65 SC050 74.2 87.4 44.0 8.0 100 6 SC 050 Technology
SPF 60 ED-65 SC050 107.0 135.0 65.0 12.7 75 6 SC 050 Valve
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor
Switches and Monitoring
**The recommended hose diameter refers to a hose length of approx. 2 m

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/spf
