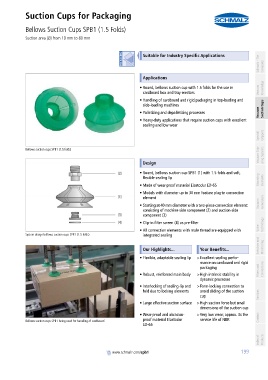

Suction Cups for Packaging
Bellows Suction Cups SPB1 (1.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 10 mm to 80 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Round, bellows suction cup with 1.5 folds for the use in Vacuum Knowledge
cardboard box and tray erectors
• Handling of cardboard and rigid packaging in top-loading and
side-loading machines Suction Cups
Vacuum
• Palletizing and depalletizing processes
• Heavy-duty applications that require suction cups with excellent
sealing and low wear
Special Grippers

Vacuum Grip- ping Systems
Bellows suction cups SPB1 (1.5 folds)
container
Design

• Round, bellows suction cup SPB1 (1) with 1.5 folds and soft,
flexible sealing lip Mounting Elements
• Made of wear-proof material Elastodur ED-65
• Models with diameter up to 30 mm feature plug-in connection
element
• Starting at 40 mm diameter with a two-piece connection element: Vacuum Generators
consisting of machine-side component (2) and suction-side
component (3)
• Clip-in filter screen (4) as pre-filter Technology
• All connection elements with male thread are equipped with Valve
System design bellows suction cups SPB1 (1.5 folds) integrated sealing
Switches and Monitoring
container
Our Highlights... Your Benefits...
• Flexible, adaptable sealing lip >Excellent sealing perfor-
mance on cardboard and rigid
packaging Filters and Connections
• Robust, reinforced main body >High intrinsic stability in
dynamic processes
• Interlocking of sealing-lip and >Form-locking connection to
fold due to locking elements avoid sliding of the suction
cup Services
• Large effective suction surface >High suction force but small
dimensions of the suction cup
• Wear-proof and abrasion- >Very low wear; approx. 3x the
proof material Elastodur service life of NBR Contact
Bellows suction cups SPB1 being used for handling of cardboard
ED-65

Index of Products

container
www.schmalz.com/spb1
