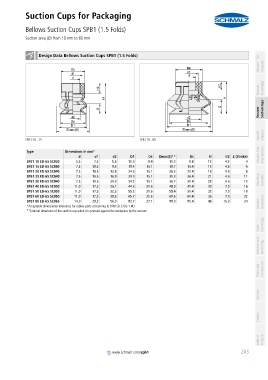

Suction Cups for Packaging
Bellows Suction Cups SPB1 (1.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 10 mm to 80 mm PA01019111_inh_EN.pdf

container

container Design Data Bellows Suction Cups SPB1 (1.5 Folds) Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SPB1-10...15 SPB1 20...80

container
Type Dimensions in mm*
d d1 d2 D1 Dk Dmax(S)** Ds H H2 Z (Stroke) Vacuum Grip- ping Systems
SPB1 10 ED-65 SC030 5.5 7.5 5.6 11.0 9.4 11.3 9.8 12 4.2 4
SPB1 15 ED-65 SC040 7.5 10.5 9.5 18.4 15.1 19.7 15.4 15 4.6 6
SPB1 20 ED-65 SC040 7.5 10.5 13.8 24.6 15.1 26.3 21.4 18 4.6 8
SPB1 25 ED-65 SC040 7.5 10.5 16.9 29.0 15.1 31.3 26.4 21 4.6 11
SPB1 30 ED-65 SC040 7.5 10.5 20.0 34.2 15.1 36.7 31.4 23 4.6 13 Mounting Elements
SPB1 40 ED-65 SC050 11.0 17.5 26.1 44.6 21.6 48.0 41.4 30 7.0 16
SPB1 50 ED-65 SC050 11.0 17.5 32.3 55.2 21.6 58.4 51.4 32 7.0 18
SPB1 60 ED-65 SC050 11.0 17.5 38.6 65.7 21.6 69.6 61.4 36 7.0 22
SPB1 80 ED-65 SC065 14.0 29.3 56.0 82.7 27.1 88.0 81.4 46 15.3 24 Vacuum Generators
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum

Valve Technology

Switches and Monitoring

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/spb1
