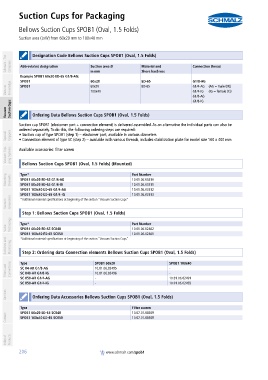

Suction Cups for Packaging
Bellows Suction Cups SPOB1 (Oval, 1.5 Folds)
PA01019111_inh_EN.pdf Suction area (LxW) from 60x20 mm to 100x40 mm PA01019111_inh_EN.pdf

container
Designation Code Bellows Suction Cups SPOB1 (Oval, 1.5 Folds)
Schmalz - The Company container Abbreviated designation Suction area Ø Material and Connection thread

Example SPOB1 60x20 ED-65 G1/8-AG: in mm Shore hardness G1/8-AG
ED-65
60x20
SPOB1
Vacuum Knowledge SPOB1 60x20 ED-65 G1/4-AG (AG = male (M))
G1/4-IG
100x40
(IG = female (F))
G1/8-AG
G1/8-IG
Vacuum Suction Cups container Ordering Data Bellows Suction Cups SPOB1 (Oval, 1.5 Folds)

Suction cup SPOB1 (elastomer part + connection element) is delivered assembled. As an alternative the individual parts can also be
container
ordered separately. To do this, the following ordering steps are required:
Special Grippers • Suction cup of type SPOB1 (step 1) – elastomer part, available in various diameters
• Connection element of type SC (step 2) – available with various threads, includes stabilization plate for model size 100 x 400 mm
Vacuum Grip- ping Systems Available accessories: filter screen

container
Bellows Suction Cups SPOB1 (Oval, 1.5 Folds) (Mounted)
container Type* Part Number
Mounting Elements SPOB1 60x20 ED-65 G1/8-AG 10.01.06.03510
SPOB1 60x20 ED-65 G1/8-IG
10.01.06.03511
SPOB1 100x40 ED-65 G1/4-AG 10.01.06.03512
SPOB1 100x40 ED-65 G1/4-IG 10.01.06.03513
Vacuum Generators *Additional material specifications at beginning of the section "Vacuum Suction Cups"

container
Step 1: Bellows Suction Cups SPOB1 (Oval, 1.5 Folds)

Valve Technology container Type* Part Number
SPOB1 60x20 ED-65 SC040
10.01.06.02462
SPOB1 100x40 ED-65 SC050 10.01.06.02461
Switches and Monitoring container Step 2: Ordering data Connection elements Bellows Suction Cups SPOB1 (Oval, 1.5 Folds)
*Additional material specifications at beginning of the section "Vacuum Suction Cups"

container Type SPOB1 60x20 SPOB1 100x40
Filters and Connections SC 04-AR G1/8-AG 10.01.06.02495 - -
SC 040-AR G1/8-IG
10.01.06.02496
SC 050-AR G1/4-AG - 10.01.06.02491
SC 050-AR G1/4-IG - 10.01.06.02493
Services container Ordering Data Accessories Bellows Suction Cups SPOB1 (Oval, 1.5 Folds)

container
Type Filter screen
Contact SPOB1 60x20 ED-65 SC040 10.07.01.00309
SPOB1 100x40 ED-65 SC050
10.07.01.00308

Index of Products

206 www.schmalz.com/spob1
