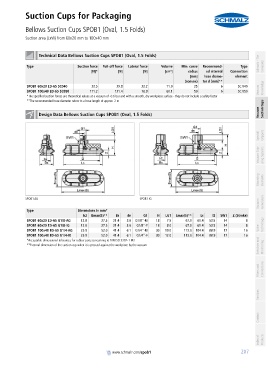

Suction Cups for Packaging
Bellows Suction Cups SPOB1 (Oval, 1.5 Folds)
PA01019111_inh_EN.pdf Suction area (LxW) from 60x20 mm to 100x40 mm PA01019111_inh_EN.pdf

container

container Technical Data Bellows Suction Cups SPOB1 (Oval, 1.5 Folds) Schmalz - The
Type Suction force Pull-off force Lateral force Volume Min. curve Recommend- Type Company
[N]* [N] [N] [cm³] radius ed internal Connection
[mm] hose diame- element
(convex) ter d [mm]**
SPOB1 60x20 ED-65 SC040 32.5 39.8 32.2 11.0 25 6 SC 040 Knowledge
SPOB1 100x40 ED-65 SC050 111.2 131.4 76.9 60.1 50 6 SC 050 Vacuum
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor
**The recommended hose diameter refers to a hose length of approx. 2 m
Vacuum
container Suction Cups
Design Data Bellows Suction Cups SPOB1 (Oval, 1.5 Folds)
container

Special Grippers

Vacuum Grip- ping Systems

Mounting Elements

SPOB1 AG SPOB1 IG
Vacuum Generators
container
Type Dimensions in mm*
b2 Bmax(S)** Bs dn G1 H LG1 Lmax(S)** Ls l2 SW1 Z (Stroke)
SPOB1 60x20 ED-65 G1/8-AG 12.8 27.5 21.4 3.6 G1/8"-M 18 7.5 67.0 61.4 53.5 14 8
SPOB1 60x20 ED-65 G1/8-IG 12.8 27.5 21.4 3.6 G1/8"-F 18 8.0 67.0 61.4 53.5 14 8 Valve Technology
SPOB1 100x40 ED-65 G1/4-AG 25.9 52.0 41.4 6.1 G1/4"-M 30 10.0 113.0 104.4 88.9 17 16
SPOB1 100x40 ED-65 G1/4-IG 25.9 52.0 41.4 6.1 G1/4"-F 30 12.0 113.0 104.4 88.9 17 16
Switches and Monitoring
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/spob1
