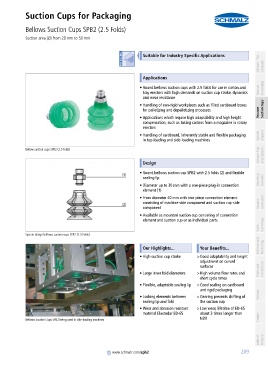

Suction Cups for Packaging
Bellows Suction Cups SPB2 (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 20 mm to 50 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Round bellows suction cups with 2.5 folds for use in carton and Vacuum Knowledge
tray erectors with high demands on suction cup stroke, dynamics
and wear resistance
• Handling of non-rigid workpieces such as filled cardboard boxes
for palletizing and depalletizing processes Vacuum Suction Cups
• Applications which require high adaptability and high height
compensation, such as taking cartons from a magazine in rotary
erectors
• Handling of cardboard, inherently stable and flexible packaging Special Grippers
in top-loading and side-loading machines
Vacuum Grip- ping Systems
Bellow suction cups SPB2 (2.5 folds)
container
Design

• Round bellows suction cup SPB2 with 2.5 folds (2) and flexible
sealing lip Mounting Elements
• Diameter up to 30 mm with a one-piece plug-in connection
element (1)
• From diameter 40 mm with two-piece connection element:
consisting of machine-side component and suction cup-side Vacuum Generators
component
• Available as mounted suction cup consisting of connection
element and suction cup or as individual parts
Valve Technology

System design bellows suction cups SPB2 (2.5 Folds)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• High suction cup stroke >Good adaptability and height
adjustment on curved
surfaces Connections
• Large inner fold diameters >High volume flow rates and Filters and
short cycle times
• Flexible, adaptable sealing lip >Good sealing on cardboard
and rigid packaging
• Locking elements between >Gearing prevents shifting of Services
sealing lip and fold the suction cup
• Wear and abrasion resistant >Low wear, lifetime of ED-65
material Elastodur ED-65 about 3 times longer than
NBR Contact
Bellows Suction Cups SPB2 being used in side-loading machines

Index of Products

container
www.schmalz.com/spb2
