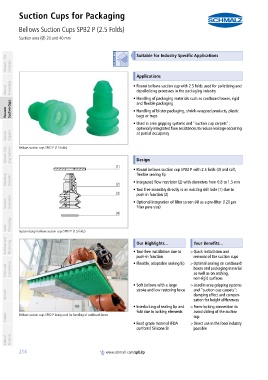

Suction Cups for Packaging
Bellows Suction Cups SPB2 P (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) 20 and 40 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications

Vacuum Knowledge • Round bellows suction cup with 2.5 folds used for palletizing and
depalletizing processes in the packaging industry
• Handling of packaging materials such as cardboard boxes, rigid
and flexible packaging
Vacuum Suction Cups • Handling of blister packaging, shrink-wrapped products, plastic
bags or trays
• Used in area gripping systems and "suction cup carpets";
optionally integrated flow resistances to reduce leakage occurring
Special Grippers at partial occupancy

Vacuum Grip- ping Systems Bellows suction cups SPB2 P (2.5 folds) Design

container

• Round bellows suction cup SPB2 P with 2.5 folds (3) and soft,
flexible sealing lip
Mounting Elements • Integrated flow restrictor (2) with diameters from 0.8 to 1.5 mm

• Tool free assembly directly in an existing drill hole (1) due to
push-in function (2)
Vacuum Generators • Optional integration of filter screen (4) as a pre-filter (120 µm
filter pore size)

Valve Technology System design bellows suction cups SPB2 P (2.5 folds)

Switches and Monitoring container Our Highlights... Your Benefits...

• Tool-free installation due to
push-in function >Quick installation and
removal of the suction cups
Filters and Connections • Flexible, adaptable sealing lip >Optimal sealing on cardboard
boxes and packaging material
as well as on arching,
non-rigid surfaces
• Soft bellows with a large >Used in area gripping systems
Services stroke and low restoring force and "suction cup carpets";
damping effect and compen-
sation for height differences
• Interlocking of sealing lip and >Form-locking connection to
fold due to locking elements avoid sliding of the suction
Contact Bellows suction cups SPB2 P being used for handling of cardboard boxes cup

• Food grade material (FDA >Direct use in the food industry
conform) Silicone SI possible
