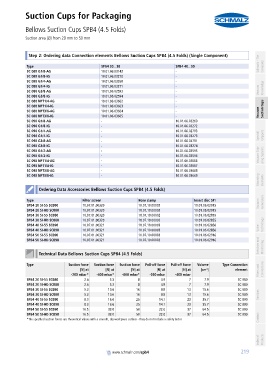

Suction Cups for Packaging
Bellows Suction Cups SPB4 (4.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 20 mm to 50 mm PA01019111_inh_EN.pdf

container

container Step 2: Ordering data Connection elements Bellows Suction Cups SPB4 (4.5 Folds) (Single Component) Schmalz - The
Type SPB4 20...30 SPB4 40...50 Company
SC 080 G1/8-AG 10.01.06.03142 -
SC 080 G1/8-IG 10.01.06.03270 -
SC 080 G1/4-AG 10.01.06.03268 -
SC 080 G1/4-IG 10.01.06.03271 - Knowledge
SC 080 G3/8-AG 10.01.06.02593 - Vacuum
SC 080 G3/8-IG 10.01.06.02594 -
SC 080 NPT1/4-AG 10.01.06.03662 -
SC 080 NPT1/4-IG 10.01.06.03663 -
SC 080 NPT3/8-AG 10.01.06.03664 - Vacuum Suction Cups
SC 080 NPT3/8-IG 10.01.06.03665 -
SC 090 G1/8-AG - 10.01.06.03269
SC 090 G1/8-IG - 10.01.06.03272
SC 090 G1/4-AG - 10.01.06.02793
SC 090 G1/4-IG - 10.01.06.03273 Special Grippers
SC 090 G3/8-AG - 10.01.06.02791
SC 090 G3/8-IG - 10.01.06.03274
SC 090 G1/2-AG - 10.01.06.02595
SC 090 G1/2-IG - 10.01.06.02596 Vacuum Grip- ping Systems
SC 090 NPT1/4-AG - 10.01.06.03666
SC 090 NPT1/4-IG - 10.01.06.03667
SC 090 NPT3/8-AG - 10.01.06.03668
Mounting Elements
SC 090 NPT3/8-IG - 10.01.06.03669

container
Ordering Data Accessories Bellows Suction Cups SPB4 (4.5 Folds)
container
Type Filter screen Hose clamp Insert disc SPI Generators
SPB4 20 SI-55 SC080 10.07.01.00320 10.07.10.00002 10.01.06.02915 Vacuum
SPB4 20 SI-HD SC080 10.07.01.00320 10.07.10.00002 10.01.06.02915
SPB4 30 SI-55 SC080 10.07.01.00320 10.07.10.00002 10.01.06.02855
SPB4 30 SI-HD SC080 10.07.01.00320 10.07.10.00002 10.01.06.02855
SPB4 40 SI-55 SC090 10.07.01.00321 10.07.10.00003 10.01.06.02856 Technology
SPB4 40 SI-HD SC090 10.07.01.00321 10.07.10.00003 10.01.06.02856 Valve
SPB4 50 SI-55 SC090 10.07.01.00321 10.07.10.00003 10.01.06.02916
Switches and Monitoring
SPB4 50 SI-HD SC090 10.07.01.00321 10.07.10.00003 10.01.06.02916

container
Technical Data Bellows Suction Cups SPB4 (4.5 Folds)
container
Type Suction force Suction force Suction force Pull-off force Pull-off force Volume Type Connection
[N] at [N] at [N] at [N] at [N] at [cm³] element Filters and Connections
-200 mbar* -400 mbar* -600 mbar* -200 mbar -400 mbar
SPB4 20 SI-55 SC080 2.6 5.3 8 4.9 7 7.9 SC 080
SPB4 20 SI-HD SC080 2.6 5.3 8 4.9 7 7.9 SC 080
SPB4 30 SI-55 SC080 5.3 10.6 16 9.9 13 15.6 SC 080
SPB4 30 SI-HD SC080 5.3 10.6 16 9.9 13 15.6 SC 080 Services
SPB4 40 SI-55 SC090 8.3 16.6 25 14.1 23 35.7 SC 090
SPB4 40 SI-HD SC090 8.3 16.6 25 14.1 23 35.7 SC 090
SPB4 50 SI-55 SC090 16.5 33.0 50 22.0 37 64.5 SC 090
SPB4 50 SI-HD SC090 16.5 33.0 50 22.0 37 64.5 SC 090
*The specified suction forces are theoretical values with a smooth, dry workpiece surface - they do not include a safety factor Contact

Index of Products

container
www.schmalz.com/spb4
