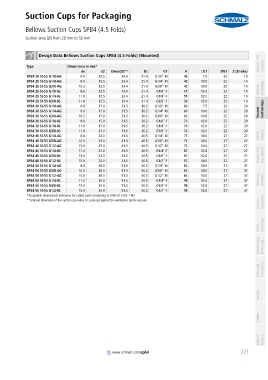

Suction Cups for Packaging
Bellows Suction Cups SPB4 (4.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 20 mm to 50 mm PA01019111_inh_EN.pdf

container

container Design Data Bellows Suction Cups SPB4 (4.5 Folds) (Mounted) Schmalz - The
Type Dimensions in mm* Company
dn d2 Dmax(S)** Ds G1 H LG1 SW1 Z (Stroke)
SPB4 20 SI-55 G1/8-AG 4.0 13.5 24.4 21.4 G1/8"-M 48 7.5 22 10
SPB4 20 SI-55 G1/4-AG 8.0 13.5 24.4 21.4 G1/4"-M 48 10.0 22 10
SPB4 20 SI-55 G3/8-AG 10.3 13.5 24.4 21.4 G3/8"-M 48 10.0 22 10 Knowledge
SPB4 20 SI-55 G1/8-IG 8.6 13.5 24.4 21.4 G1/8"-F 58 12.0 22 10 Vacuum
SPB4 20 SI-55 G1/4-IG 11.0 13.5 24.4 21.4 G1/4"-F 58 12.0 22 10
SPB4 20 SI-55 G3/8-IG 11.0 13.5 24.4 21.4 G3/8"-F 58 12.0 22 10
SPB4 30 SI-55 G1/8-AG 4.0 17.0 31.5 30.2 G1/8"-M 60 7.5 22 20
SPB4 30 SI-55 G1/4-AG 8.0 17.0 31.5 30.2 G1/4"-M 60 10.0 22 20 Vacuum Suction Cups
SPB4 30 SI-55 G3/8-AG 10.3 17.0 31.5 30.2 G3/8"-M 60 10.0 22 20
SPB4 30 SI-55 G1/8-IG 8.6 17.0 31.5 30.2 G1/8"-F 70 12.0 22 20
SPB4 30 SI-55 G1/4-IG 11.0 17.0 31.5 30.2 G1/4"-F 70 12.0 22 20
SPB4 30 SI-55 G3/8-IG 11.0 17.0 31.5 30.2 G3/8"-F 70 12.0 22 20
SPB4 40 SI-55 G1/4-AG 8.0 23.0 41.5 40.5 G1/4"-M 73 10.0 27 27 Special Grippers
SPB4 40 SI-55 G3/8-AG 10.3 23.0 41.5 40.5 G3/8"-M 73 10.0 27 27
SPB4 40 SI-55 G1/2-AG 15.0 23.0 41.5 40.5 G1/2"-M 73 14.0 27 27
SPB4 40 SI-55 G1/4-IG 11.4 23.0 41.5 40.5 G1/4"-F 87 12.0 27 27
SPB4 40 SI-55 G3/8-IG 15.0 23.0 41.5 40.5 G3/8"-F 87 12.0 27 27 Vacuum Grip- ping Systems
SPB4 40 SI-55 G1/2-IG 15.0 23.0 41.5 40.5 G1/2"-F 87 16.0 27 27
SPB4 50 SI-55 G1/4-AG 8.0 30.0 51.5 50.3 G1/4"-M 84 10.0 27 37
SPB4 50 SI-55 G3/8-AG 10.3 30.0 51.5 50.3 G3/8"-M 84 10.0 27 37
SPB4 50 SI-55 G1/2-AG 15.0 30.0 51.5 50.3 G1/2"-M 84 14.0 27 37
SPB4 50 SI-55 G1/4-IG 11.4 30.0 51.5 50.3 G1/4"-F 98 12.0 27 37 Mounting Elements
SPB4 50 SI-55 G3/8-IG 15.0 30.0 51.5 50.3 G3/8"-F 98 12.0 27 37
SPB4 50 SI-55 G1/2-IG 15.0 30.0 51.5 50.3 G1/2"-F 98 16.0 27 37
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
Vacuum Generators
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
