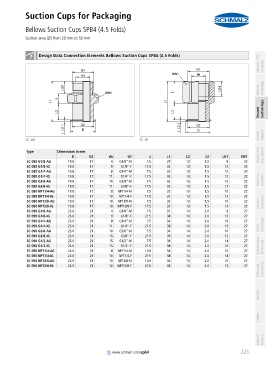

Suction Cups for Packaging
Bellows Suction Cups SPB4 (4.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 20 mm to 50 mm PA01019111_inh_EN.pdf

container

container Design Data Connection Elements Bellows Suction Cups SPB4 (4.5 Folds) Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SC...AG SC...IG

container
Type Dimensions in mm
D D2 dn G1 L L1 L2 L3 LG1 SW1 Vacuum Grip- ping Systems
SC 080 G1/8-AG 19.8 17 4 G1/8"-M 7.5 28 13 1.5 8 22
SC 080 G1/8-IG 19.8 17 9 G1/8"-F 17.5 32 13 1.5 12 22
SC 080 G1/4-AG 19.8 17 8 G1/4"-M 7.5 32 13 1.5 10 22
SC 080 G1/4-IG 19.8 17 11 G1/4"-F 17.5 32 13 1.5 12 22
SC 080 G3/8-AG 19.8 17 10 G3/8"-M 7.5 32 13 1.5 10 22 Mounting Elements
SC 080 G3/8-IG 19.8 17 11 G3/8"-F 17.5 32 13 1.5 12 22
SC 080 NPT1/4-AG 19.8 17 8 NPT1/4-M 7.5 32 13 1.5 10 22
SC 080 NPT1/4-IG 19.8 17 10 NPT1/4-F 17.5 32 13 1.5 13 22
SC 080 NPT3/8-AG 19.8 17 10 NPT3/8-M 7.5 32 13 1.5 10 22 Vacuum Generators
SC 080 NPT3/8-IG 19.8 17 10 NPTF3/8-F 17.5 32 13 1.5 13 22
SC 090 G1/8-AG 25.0 21 4 G1/8"-M 7.5 31 14 2.0 8 27
SC 090 G1/8-IG 25.0 21 9 G1/8"-F 21.5 38 14 2.0 12 27
SC 090 G1/4-AG 25.0 21 8 G1/4"-M 7.5 34 14 2.0 10 27
SC 090 G1/4-IG 25.0 21 11 G1/4"-F 21.5 38 14 2.0 12 27 Valve Technology
SC 090 G3/8-AG 25.0 21 10 G3/8"-M 7.5 34 14 2.0 10 27
SC 090 G3/8-IG 25.0 21 15 G3/8"-F 21.5 38 14 2.0 12 27
SC 090 G1/2-AG 25.0 21 15 G1/2"-M 7.5 38 14 2.0 14 27
SC 090 G1/2-IG 25.0 21 15 G1/2"-F 21.5 38 14 2.0 16 27 Switches and Monitoring
SC 090 NPT1/4-AG 25.0 21 8 NPT1/4-M 10.0 36 14 2.0 10 27
SC 090 NPT1/4-IG 25.0 21 10 NPT1/4-F 21.5 38 14 2.0 14 27
SC 090 NPT3/8-AG 25.0 21 10 NPT3/8-M 10.0 36 14 2.0 10 27
Filters and Connections
SC 090 NPT3/8-IG 25.0 21 10 NPTF3/8-F 21.5 38 14 2.0 13 27
