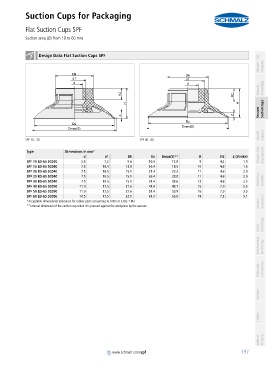

Suction Cups for Packaging
Flat Suction Cups SPF
PA01019111_inh_EN.pdf Suction area (Ø) from 10 to 60 mm PA01019111_inh_EN.pdf

container

container Design Data Flat Suction Cups SPF Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SPF 10...30 SPF 40...60

container
Type Dimensions in mm*
d d1 Dk Ds Dmax(S)** H H2 Z (Stroke) Vacuum Grip- ping Systems
SPF 10 ED-65 SC030 5.5 7.2 9.6 10.5 12.0 9 4.2 1.0
SPF 15 ED-65 SC040 7.5 10.4 13.0 16.4 18.5 10 4.6 1.5
SPF 20 ED-65 SC040 7.5 10.5 15.1 21.4 23.3 11 4.6 2.0
SPF 25 ED-65 SC040 7.5 10.5 15.1 26.4 28.0 11 4.6 2.0
SPF 30 ED-65 SC040 7.5 10.5 15.1 31.4 33.6 12 4.6 2.5 Mounting Elements
SPF 40 ED-65 SC050 11.0 17.5 21.6 41.4 43.7 15 7.0 2.5
SPF 50 ED-65 SC050 11.0 17.5 21.6 51.4 53.9 16 7.0 3.5
SPF 60 ED-65 SC050 10.5 17.5 22.1 61.2 65.0 18 7.5 5.1
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3 Vacuum Generators
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum

Valve Technology

Switches and Monitoring

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/spf
