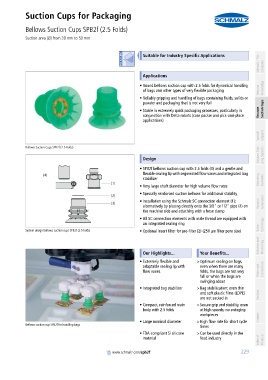

Suction Cups for Packaging
Bellows Suction Cups SPB2f (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 30 mm to 50 mm Suitable for Industry Specific Applications PA01019111_inh_EN.pdf

container

container Schmalz - The Company
Applications

• Round bellows suction cup with 2.5 folds for dynamical handling
of bags and other types of very flexible packaging Vacuum Knowledge
• Reliably gripping and handling of bags containing fluids, solids or
powder and packaging that is not very full
• Stable in extremely quick packaging processes, particularly in Vacuum Suction Cups
conjunction with Delta robots (case packer and pick-and-place
applications)

Special Grippers

Bellows Suction Cups SPB2f (2.5 Folds)
Vacuum Grip- ping Systems
container
Design

• SPB2f bellows suction cup with 2.5 folds (3) and a gentle and
flexible sealing lip with segmented flow vanes and integrated bag
stabilizer Mounting Elements

• Very large shaft diameter for high volume flow rates
• Specially reinforced suction bellows for additional stability
• Installation using the Schmalz SC connection element (1); Vacuum Generators
alternatively by placing directly onto the 3/8" or 1/2" pipe (4) on
the machine side and attaching with a hose clamp
• All SC connection elements with male thread are equipped with
an integrated sealing ring Technology
System design bellows suction cups SPB2f (2.5 folds) • Optional insert filter for pre-filter (2) (250 µm filter pore size) Valve
Switches and Monitoring

container
Our Highlights... Your Benefits...
• Extremely flexible and >Optimum sealing on bags,
adaptable sealing lip with even when there are many
flow vanes folds, the bags are not very Filters and Connections
full or when the bags are
swinging about
• Integrated bag stabilizer >Bag stabilization; even thin
and soft plastic films (LDPE) Services
are not sucked in
• Compact, reinforced main >Secure grip and stability, even
body with 2.5 folds at high speeds; no swinging
workpieces Contact
• Large nominal diameter >High flow rate for short cycle
Bellows suction cup SPB2f for handling bags
times
• FDA-compliant SI silicone >Can be used directly in the
material food industry Index of Products
container
www.schmalz.com/spb2f
