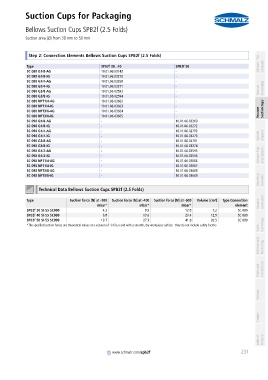

Suction Cups for Packaging
Bellows Suction Cups SPB2f (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 30 mm to 50 mm PA01019111_inh_EN.pdf

container

container Step 2: Connection Elements Bellows Suction Cups SPB2f (2.5 Folds) Schmalz - The
Type SPB2f 30...40 SPB2f 50 Company
SC 080 G1/8-AG 10.01.06.03142 -
SC 080 G1/8-IG 10.01.06.03270 -
SC 080 G1/4-AG 10.01.06.03268 -
SC 080 G1/4-IG 10.01.06.03271 - Knowledge
SC 080 G3/8-AG 10.01.06.02593 - Vacuum
SC 080 G3/8-IG 10.01.06.02594 -
SC 080 NPT1/4-AG 10.01.06.03662 -
SC 080 NPT1/4-IG 10.01.06.03663 -
SC 080 NPT3/8-AG 10.01.06.03664 - Vacuum Suction Cups
SC 080 NPT3/8-IG 10.01.06.03665 -
SC 090 G1/8-AG - 10.01.06.03269
SC 090 G1/8-IG - 10.01.06.03272
SC 090 G1/4-AG - 10.01.06.02793
SC 090 G1/4-IG - 10.01.06.03273 Special Grippers
SC 090 G3/8-AG - 10.01.06.02791
SC 090 G3/8-IG - 10.01.06.03274
SC 090 G1/2-AG - 10.01.06.02595
SC 090 G1/2-IG - 10.01.06.02596 Vacuum Grip- ping Systems
SC 090 NPT1/4-AG - 10.01.06.03666
SC 090 NPT1/4-IG - 10.01.06.03667
SC 090 NPT3/8-AG - 10.01.06.03668
Mounting Elements
SC 090 NPT3/8-IG - 10.01.06.03669

container
Technical Data Bellows Suction Cups SPB2f (2.5 Folds)
container
Type Suction force [N] at -200 Suction force [N] at -400 Suction force [N] at -600 Volume [cm³] Type Connection Generators
mbar* mbar* mbar* element Vacuum
SPB2f 30 SI-55 SC080 4.3 8.5 12.8 7.2 SC 080
SPB2f 40 SI-55 SC080 6.8 13.6 20.4 12.9 SC 080
SPB2f 50 SI-55 SC090 13.7 27.3 41.0 26.5 SC 090
Valve
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include safety factors Technology

Switches and Monitoring

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/spb2f
