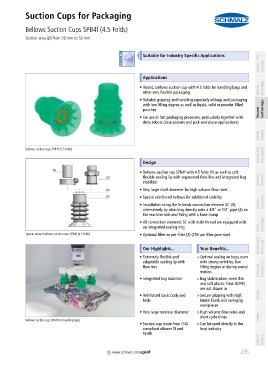

Page 235 - Schmalz - Vacuum Components

EN_Sauggreifer.book Seite 235 Donnerstag, 25. Februar 2016 5:25 17
PA01019111_inh_EN.pdf
Suction Cups for Packaging
Bellows Suction Cups SPB4f (4.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 30 mm to 50 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Round, bellows suction cup with 4.5 folds for handling bags and Vacuum Knowledge
other very flexible packaging
• Reliable gripping and handling especially of bags and packaging
with low filling degree as well as liquid, solid or powder filled
pouches Vacuum Suction Cups
• For use in fast packaging processes, particularly together with
delta robots (case packers and pick-and-place applications)

Special Grippers

Vacuum Grip- ping Systems
Bellows suction cups SPB4f (4.5 folds)
container
Design

• Bellows suction cup SPB4f with 4.5 folds (1) as well as soft,
flexible sealing lip with segmented flow fins and integrated bag Mounting
stabilizer Elements
• Very large shaft diameter for high volume flow rates

• Special reinforced bellows for additional stability
• Installation using the Schmalz connection element SC (3); Vacuum Generators
alternatively by attaching directly onto a 3/8" or 1/2" pipe (4) on
the machine side and fixing with a hose clamp

• All connection elements SC with male thread are equipped with Technology
Valve
an integrated sealing ring
System design bellows suction cups SPB4f (4.5 folds) • Optional filter as pre-filter (2) (250 µm filter pore size)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Extremely flexible and >Optimal sealing on bags, even
adaptable sealing lip with with strong wrinkles, low
flow fins filling degree or during swivel Connections
motion Filters and
• Integrated bag stabilizer >Bag stabilization; even thin
and soft plastic films (LDPE)
are not drawn in
• Reinforced basic body and >Secure gripping with high Services
folds lateral loads and swinging
workpieces
• Very large nominal diameter >High volume flow rates and
short cycle times Contact
Bellows suction cup SPB4f for handling bags
• Suction cup made from FDA >Can be used directly in the
compliant silicone SI and food industry
SI-HD
Index of Products

container
container 235
www.schmalz.com/spb4f
