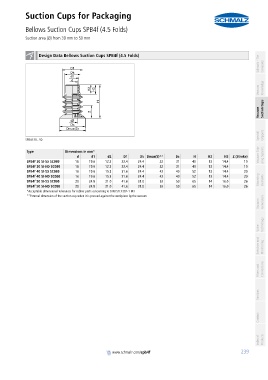

Suction Cups for Packaging
Bellows Suction Cups SPB4f (4.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 30 mm to 50 mm PA01019111_inh_EN.pdf

container

container Design Data Bellows Suction Cups SPB4f (4.5 Folds) Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SPB4f 30...50

container
Type Dimensions in mm*
d d1 d2 D1 Dk Dmax(S)** Ds H H2 H3 Z (Stroke) Vacuum Grip- ping Systems
SPB4f 30 SI-55 SC080 16 19.6 12.3 22.4 24.4 32 31 40 13 14.4 10
SPB4f 30 SI-HD SC080 16 19.6 12.3 22.4 24.4 32 31 40 13 14.4 10
SPB4f 40 SI-55 SC080 16 19.6 15.3 31.6 24.4 42 40 52 13 14.4 20
SPB4f 40 SI-HD SC080 16 19.6 15.3 31.6 24.4 42 40 52 13 14.4 20
SPB4f 50 SI-55 SC090 20 24.8 21.0 41.6 31.0 52 50 65 14 16.0 26 Mounting Elements
SPB4f 50 SI-HD SC090 20 24.8 21.0 41.6 31.0 52 50 65 14 16.0 26
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
Vacuum Generators

Valve Technology

Switches and Monitoring

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/spb4f
