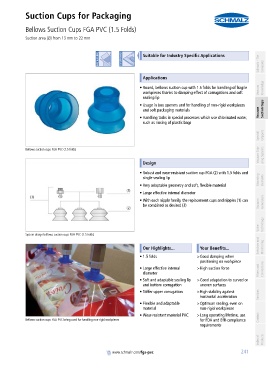

Suction Cups for Packaging
Bellows Suction Cups FGA PVC (1.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 13 mm to 22 mm ELECTRONICS Suitable for Industry Specific Applications PA01019111_inh_EN.pdf

container

container Schmalz - The Company
Applications
• Round, bellows suction cup with 1.5 folds for handling of fragile Vacuum Knowledge
workpieces thanks to damping effect of corrugations and soft
sealing lip
• Usage in box openers and for handling of non-rigid workpieces
and soft packaging materials Vacuum Suction Cups
• Handling tasks in special processes which use chlorinated water,
such as rinsing of plastic bags

Special Grippers

Vacuum Grip- ping Systems
Bellows suction cups FGA PVC (1.5 folds)
container
Design

• Robust and wear-resistant suction cup FGA (2) with 1.5 folds and
single sealing lip Mounting Elements
• Very adaptable geometry and soft, flexible material
• Large effective internal diameter
• With each nipple family, the replacement cups and nipples (1) can Generators
be combined as desired (3) Vacuum

Valve Technology

System design bellows suction cups FGA PVC (1.5 folds)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• 1.5 folds >Good damping when
positioning on workpiece
• Large effective internal >High suction force Filters and Connections
diameter
• Soft and adaptable sealing lip >Good adaptation to curved or
and bottom corrugation uneven surfaces
• Stiffer upper corrugation >High stability against
horizontal acceleration Services
• Flexible and adaptable >Optimum sealing, even on
material non-rigid workpieces
• Wear-resistant material PVC >Long operating lifetime, use
Bellows suction cups FGA PVC being used for handling non-rigid workpieces for FDA and BfR-compliance Contact
requirements

Index of Products

container
www.schmalz.com/fga-pvc
