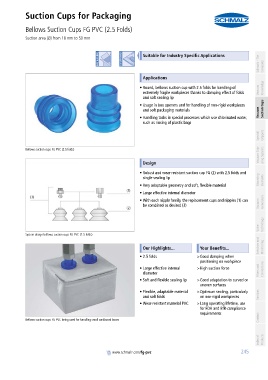

Suction Cups for Packaging
Bellows Suction Cups FG PVC (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 18 mm to 50 mm ELECTRONICS Suitable for Industry Specific Applications PA01019111_inh_EN.pdf

container

container Schmalz - The Company
Applications
• Round, bellows suction cup with 2.5 folds for handling of Vacuum Knowledge
extremely fragile workpieces thanks to damping effect of folds
and soft sealing lip
• Usage in box openers and for handling of non-rigid workpieces
and soft packaging materials Vacuum Suction Cups
• Handling tasks in special processes which use chlorinated water,
such as rinsing of plastic bags

Special Grippers

Vacuum Grip- ping Systems
Bellows suction cups FG PVC (2.5 folds)
container
Design

• Robust and wear-resistant suction cup FG (2) with 2.5 folds and
single sealing lip Mounting Elements
• Very adaptable geometry and soft, flexible material
• Large effective internal diameter
• With each nipple family, the replacement cups and nipples (1) can Generators
be combined as desired (3) Vacuum

Valve Technology

System design bellows suction cups FG PVC (2.5 folds)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• 2.5 folds >Good damping when
positioning on workpiece
• Large effective internal >High suction force Filters and Connections
diameter
• Soft and flexible sealing lip >Good adaptation to curved or
uneven surfaces
• Flexible, adaptable material >Optimum sealing, particularly
and soft folds on non-rigid workpieces Services
• Wear-resistant material PVC >Long operating lifetime, use
for FDA and BfR-compliance
requirements
Bellows suction cups FG PVC being used for handling small cardboard boxes Contact

Index of Products

container
www.schmalz.com/fg-pvc
