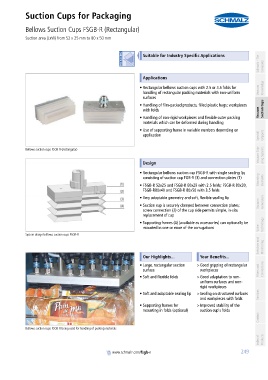

Suction Cups for Packaging
Bellows Suction Cups FSGB-R (Rectangular)
PA01019111_inh_EN.pdf Suction area (LxW) from 52 x 25 mm to 80 x 50 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Rectangular bellows suction cups with 2.5 or 3.5 folds for Vacuum Knowledge
handling of rectangular packing materials with non-uniform
surfaces
• Handling of film-packed products, filled plastic bags; workpieces
with folds Vacuum Suction Cups
• Handling of non-rigid workpieces and flexible outer packing
materials which can be deformed during handling
• Use of supporting frame in variable numbers depending on
Special
application Grippers

Vacuum Grip- ping Systems
Bellows suction cups FSGB-R (rectangular)
container
Design

• Rectangular bellows suction cup FSGB-R with single sealing lip,
consisting of suction cup FGB-R (3) and connection plates (1) Mounting Elements
• FSGB-R 52x25 and FSGB-R 60x29 with 2.5 folds; FSGB-R 80x30,
FSGB-R80x40 and FSGB-R 80x50 with 3.5 folds
• Very adaptable geometry and soft, flexible sealing lip
• Suction cup is securely clamped between connection plates; Vacuum Generators
screw connection (2) of the cup side permits simple, in-situ
replacement of cup
• Supporting frames (4) (available as accessories) can optionally be Technology
mounted in one or more of the corrugations Valve
System design bellows suction cups FSGB-R
Switches and Monitoring

container
Our Highlights... Your Benefits...
• Large, rectangular suction >Good gripping of rectangular
surface workpieces Filters and Connections
• Soft and flexible folds >Good adaptation to non-
uniform surfaces and non-
rigid workpieces
• Soft and adaptable sealing lip >Sealing on structured surfaces Services
and workpieces with folds
• Supporting frames for >Improved stability of the
mounting in folds (optional) suction cup's folds
Contact

Bellows suction cups FSGB-R being used for handling of packing materials
Index of Products

container
www.schmalz.com/fsgb-r
