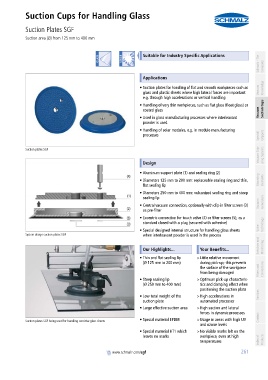

Suction Cups for Handling Glass
Suction Plates SGF
PA01019111_inh_EN.pdf Suction area (Ø) from 125 mm to 400 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Suction plates for handling of flat and smooth workpieces such as Vacuum Knowledge
glass and plastic sheets where high lateral forces are important
e.g. through high accelerations or vertical handling
• Handling of very thin workpieces, such as flat glass (float glass) or
coated glass Vacuum Suction Cups
• Used in glass manufacturing processes where interleavant
powder is used
• Handling of solar modules, e.g. in module manufacturing
Special
processes Grippers

Vacuum Grip- ping Systems
Suction plates SGF
container
Design

• Aluminum support plate (1) and sealing ring (2)
• Diameters 125 mm to 200 mm: replaceable sealing ring and thin, Mounting Elements
flat sealing lip
• Diameters 250 mm to 400 mm: vulcanized sealing ring and steep
sealing lip
• Central vacuum connection, optionally with clip-in filter screen (3) Vacuum Generators
as pre-filter
• Eccentric connection for touch valve (4) or filter screen (5), as a
standard closed with a plug (secured with adhesive) Technology
• Special designed internal structure for handling glass sheets Valve
System design suction plates SGF when interleavant powder is used in the process
Switches and Monitoring
container
Our Highlights... Your Benefits...
• Thin and flat sealing lip >Little relative movement
(Ø 125 mm io 200 mm) during pick-up; this prevents
the surface of the workpiece Filters and Connections
from being damaged
• Steep sealing lip >Optimum pick-up characteris-
(Ø 250 mm to 400 mm) tics and damping effect when
positioning the suction plate
• Low total weight of the >High accelerations in Services
suction plate automated processes
• Large effective suction area >High suction and lateral
forces in dynamic processes
• Special material EPDM >Usage in areas with high UV Contact
Suction plates SGF being used for handling sensitive glass sheets
and ozone levels
• Special material HT1 which >No visible marks left on the
leaves no marks workpiece, even at high
temperatures Index of Products
container
container 261
www.schmalz.com/sgf
