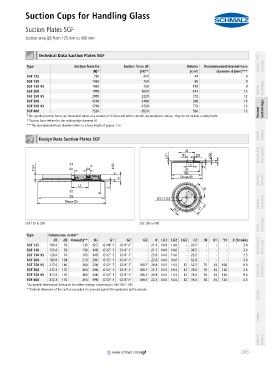

Suction Cups for Handling Glass
Suction Plates SGF
PA01019111_inh_EN.pdf Suction area (Ø) from 125 mm to 400 mm PA01019111_inh_EN.pdf

container

container Technical Data Suction Plates SGF Schmalz - The
Type Suction force Ds Suction force d2 Volume Recommended internal hose Company
[N]* [N]** [cm³] diameter d [mm]***
SGF 125 730 470 44 9
SGF 150 1060 730 65 9
SGF 150 HS 1060 730 119 9 Knowledge
SGF 200 1880 1610 144 12 Vacuum
SGF 250 HS 2900 2220 372 12
SGF 300 4240 3480 308 12
SGF 350 HS 5700 4730 779 12
SGF 400 7530 6520 560 12 Vacuum Suction Cups
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor
**Suction force referred to the sealing-edge diameter d2
***The recommended hose diameter refers to a hose length of approx. 2 m
Special
container Grippers
Design Data Suction Plates SGF
Vacuum Grip- ping Systems
container

Mounting Elements

Vacuum Generators

SGF 125 to 200 SGF 250 to 400 Technology
Valve
container
Type Dimensions in mm*
d2 d3 Dmax(S)** Ds G1 G2 G3 H LG1 LG2 LG3 L2 W X1 Y1 Z (Stroke)
SGF 125 100.0 70 130 123 G1/4"-F G1/4"-F - 21.4 14.0 14.0 - 26.5 - - - 3.0 Switches and Monitoring
SGF 150 125.0 93 156 148 G1/2"-F G1/4"-F - 21.7 14.0 14.0 - 36.5 - - - 3.3
SGF 150 HS 126.0 70 165 149 G1/2"-F G1/4"-F - 25.9 14.0 14.0 - 26.5 - - - 7.5
SGF 200 185.0 134 213 206 G1/2"-F G1/4"-F - 22.0 14.0 14.0 - 52.8 - - - 3.6
SGF 250 HS 217.0 140 260 248 G1/2"-F G1/4"-F M8-F 26.8 14.5 14.5 12 52.5 70 45 100 9.0
SGF 300 272.3 170 305 298 G1/2"-F G1/4"-F M8-F 22.3 14.5 14.5 12 76.0 50 45 120 4.5 Filters and Connections
SGF 350 HS 317.0 170 360 348 G1/2"-F G1/4"-F M8-F 26.8 14.5 14.5 12 76.0 50 45 120 9.0
SGF 400 372.3 170 405 398 G1/2"-F G1/4"-F M8-F 22.3 14.5 14.5 12 76.0 50 45 120 4.5
*Acceptable dimensional tolerances for rubber sealings concerning to DIN 3302 - M3
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
