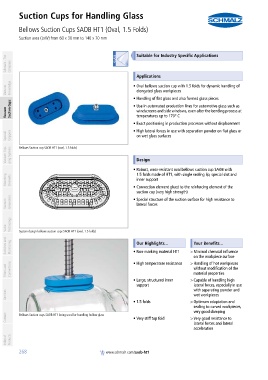

Suction Cups for Handling Glass
Bellows Suction Cups SAOB HT1 (Oval, 1.5 Folds)
PA01019111_inh_EN.pdf Suction area (LxW) from 60 x 30 mm to 140 x 70 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications

Vacuum Knowledge • Oval bellows suction cup with 1.5 folds for dynamic handling of
elongated glass workpieces
• Handling of flat glass and also formed glass pieces

Vacuum Suction Cups • Use in automated production lines for automotive glass such as
windscreens and side windows, even after the bending process at
temperatures up to 170° C
• Exact positioning in production processes without displacement

Special Grippers • High lateral forces in use with separation powder on flat glass or
on wet glass surfaces

Vacuum Grip- ping Systems Bellows Suction cup SAOB HT1 (oval, 1.5 folds) Design

container

• Robust, wear-resistant oval bellows suction cup SAOB with
Mounting Elements 1.5 folds made of HT1, with single sealing lip, special slot and
inner support
• Connection element glued to the reinforcing element of the
suction cup (very high strength)
Vacuum Generators • Special structure of the suction surface for high resistance to
lateral forces

Valve Technology System design bellows suction cups SAOB HT1 (oval, 1.5 folds)

Switches and Monitoring container Our Highlights... Your Benefits...

>Minimal chemical influence
• Non-marking material HT1
on the workpiece surface
Filters and Connections • High temperature resistance >Handling of hot workpieces
without modification of the
material properties
• Large, structured inner >Capable of handling high
support lateral forces, especially in use
Services with separating powder and
wet workpieces
• 1.5 folds >Optimum adaptation and
sealing to curved workpieces,
very good damping
Contact Bellows Suction cups SAOB HT1 being used for handling hollow glass • Very stiff top fold >Very good resistance to

lateral forces and lateral
acceleration
Index of Products

268 www.schmalz.com/saob-ht1
