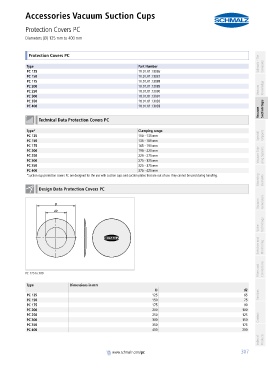

Page 307 - Schmalz - Vacuum Components

EN_Sauggreifer.book Seite 307 Donnerstag, 25. Februar 2016 5:25 17
PA01019111_inh_EN.pdf
Accessories Vacuum Suction Cups
Protection Covers PC
PA01019111_inh_EN.pdf Diameters (Ø) 125 mm to 400 mm PA01019111_inh_EN.pdf

container

container Protection Covers PC Schmalz - The
Type Part Number Company
PC 125 10.01.01.13086
PC 150 10.01.01.13087
PC 175 10.01.01.13088
PC 200 10.01.01.13089 Knowledge
PC 250 10.01.01.13090 Vacuum
PC 300 10.01.01.13091
PC 350 10.01.01.13092
PC 400 10.01.01.13093 Suction Cups
Vacuum
container
Technical Data Protection Covers PC

container
Type* Clamping range
PC 125 110 - 135 mm Special Grippers
PC 150 135 - 165 mm
PC 175 165 - 190 mm
PC 200 190 - 220 mm
PC 250 220 - 275 mm Vacuum Grip- ping Systems
PC 300 275 - 325 mm
PC 350 325 - 375 mm
PC 400 375 - 425 mm
Mounting Elements
*Suction cup protection covers PC are designed for the use with suction cups and suction plates that are out of use. They cannot be used during handling.

container
Design Data Protection Covers PC
container
Vacuum Generators

Valve Technology

Switches and Monitoring

Filters and Connections

PC 125 to 300

container
Type Dimensions in mm
D d2
PC 125 125 65 Services
PC 150 150 75
PC 175 175 90
PC 200 200 100
PC 250 250 125
PC 300 300 150 Contact
PC 350 350 175
PC 400 400 200
Index of Products

container
container 307
www.schmalz.com/pc
