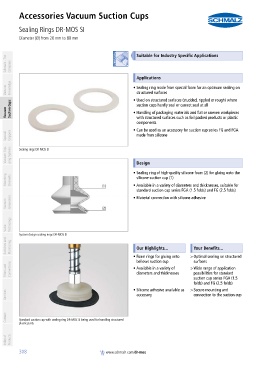

Page 308 - Schmalz - Vacuum Components

EN_Sauggreifer.book Seite 308 Donnerstag, 25. Februar 2016 5:25 17
PA01019111_inh_EN.pdf
Accessories Vacuum Suction Cups
Sealing Rings DR-MOS SI
PA01019111_inh_EN.pdf Diameter (Ø) from 20 mm to 88 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Sealing ring made from special foam for an optimum sealing on
structured surfaces
• Used on structured surfaces (studded, rippled or rough) where
suction cups hardly seal or cannot seal at all
Vacuum Suction Cups • Handling of packaging materials and flat or uneven workpieces
with structured surfaces such as foil packed products or plastic
components

Special Grippers • Can be used as an accessory for suction cup series FG and FGA
made from silicone

Vacuum Grip- ping Systems Sealing rings DR-MOS SI Design

container

• Sealing ring of high-quality silicone foam (2) for gluing onto the
Mounting Elements silicone suction cup (1)
• Available in a variety of diameters and thicknesses, suitable for
standard suction cup series FGA (1.5 folds) and FG (2.5 folds)
Vacuum Generators • Material connection with silicone adhesive

Valve Technology

System design sealing rings DR-MOS SI
Switches and Monitoring container Our Highlights... Your Benefits...

• Foam rings for gluing onto >Optimal sealing on structured
surfaces
bellows suction cup
Filters and Connections • Available in a variety of >Wide range of application
diameters and thicknesses
possibilities for standard
suction cup series FGA (1.5
folds) and FG (2.5 folds)
Services • Silicone adhesive available as >Secure mounting and
accessory
connection to the suction cup

Contact Standard suction cup with sealing ring DR-MOS SI being used for handling structured

plastic parts

Index of Products

308 www.schmalz.com/dr-mos
