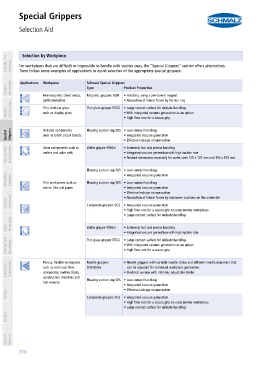

Special Grippers
Selection Aid
PA01019111_inh_EN.pdf PA01019111_inh_EN.pdf

Selection by Workpiece
Schmalz - The Company For workpieces that are difficult or impossible to handle with suction cups, the “Special Grippers” section offers alternatives.

There follow some examples of applications to assist selection of the appropriate special grippers:

Vacuum Knowledge Applications Workpiece Schmalz Special Grippers Product Properties
Type
Ferromagnetic sheet metal,
perforated plate Magnetic grippers SGM • Handling using a permanent magnet
• Absorption of lateral forces by friction ring
Vacuum Suction Cups Thin, delicate glass Thin glass gripper STGG • Large contact surface for delicate handling
such as display glass
• With integrated vacuum generation as an option
• High flow rate for a secure grip

Special Grippers ELECTRONICS Delicate components Floating suction cup SBS • Low-contact handling
• Integrated vacuum generation
such as blank circuit boards
• Effective leakage compensation
Vacuum Grip- ping Systems Solar components such as Wafer gripper SWGm • Extremely fast and precise handling
• Integrated vacuum generation with high suction rate
wafers and solar cells
• Product dimensions especially for wafer sizes 125 x 125 mm and 156 x 156 mm

Floating suction cup SBS • Low-contact handling
Mounting Elements Thin workpieces such as Floating suction cup SBS • Low-contact handling
• Integrated vacuum generation

plastic film and paper • Integrated vacuum generation
• Effective leakage compensation
• Absorption of lateral forces by elastomer cushions on the underside
Vacuum Generators Composite grippers SCG • Integrated vacuum generation
• High flow rate for a secure grip on even porous workpieces
• Large contact surface for delicate handling
Valve Technology Wafer gripper SWGm • Extremely fast and precise handling
• Integrated vacuum generation with high suction rate
Switches and Monitoring Thin glass gripper STGG • Large contact surface for delicate handling
• With integrated vacuum generation as an option
• High flow rate for a secure grip

Filters and Connections Porous, flexible workpieces Needle grippers • Needle grippers with variable needle stroke and different needle diameters that
can be adjusted for individual workpiece geometries
such as technical fiber
SNG/SNGi
composites, textiles, foam,
• Electrical version with infinitely adjustable stroke
construction materials and
Floating suction cup SBS • Low-contact handling
non-wovens
• Integrated vacuum generation
Services Composite grippers SCG • Effective leakage compensation
• Integrated vacuum generation
• High flow rate for a secure grip on even porous workpieces
• Large contact surface for delicate handling
