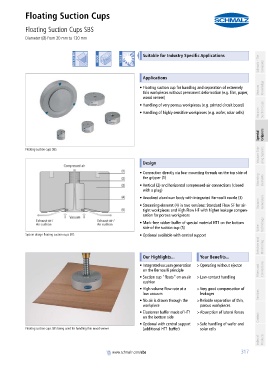

Page 317 - Schmalz - Vacuum Components

EN_Spezialgreifer.book Seite 317 Donnerstag, 25. Februar 2016 6:05 18
PA01019111_inh_EN.pdf
Floating Suction Cups
Floating Suction Cups SBS
PA01019111_inh_EN.pdf Diameter (Ø) from 20 mm to 120 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Floating suction cup for handling and separation of extremely Vacuum Knowledge
thin workpieces without permanent deformation (e.g. film, paper,
wood veneer)
• Handling of very porous workpieces (e.g. printed circuit board)
Vacuum Suction Cups
• Handling of highly sensitive workpieces (e.g. wafer, solar cells)

Special Grippers

Vacuum Grip- ping Systems
Floating suction cups SBS
container
Design

• Connection directly via four mounting threads on the top side of
the gripper (1) Mounting Elements
• Vertical (2) and horizontal compressed-air connections (closed
with a plug)
• Anodized aluminum body with integrated Bernoulli nozzle (3)
• Streaming element (4) in two versions: Standard Flow SF for air- Vacuum Generators
tight workpieces and High Flow HF with higher leakage compen-
sation for porous workpieces
• Mark-free rubber buffer of special material HT1 on the bottom Technology
side of the suction cup (5) Valve
System design floating suction cups SBS • Optional available with central support
Switches and Monitoring

container
Our Highlights... Your Benefits...
• Integrated vacuum generation >Operating without ejector
on the Bernoulli principle Filters and Connections
• Suction cup "floats" on an air >Low-contact handling
cushion
• High volume flow rate at a >Very good compensation of
low vacuum leakages Services
• No air is drawn through the >Reliable separation of thin,
workpiece porous workpieces
• Elastomer buffer made of HT1 >Absorption of lateral forces
on the bottom side Contact
• Optional with central support >Safe handling of wafer and
Floating suction cups SBS being used for handling thin wood veneer (additional HT1 buffer) solar cells
Index of Products

container
www.schmalz.com/sbs
