Magnetic Grippers

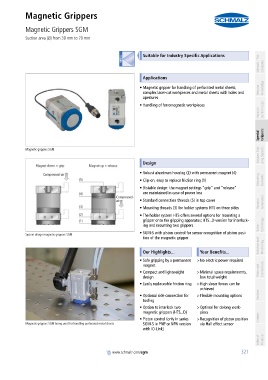

Magnetic Grippers SGM
PA01019111_inh_EN.pdf Suction area (Ø) from 30 mm to 70 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Magnetic gripper for handling of perforated metal sheets, Vacuum Knowledge
complex laser-cut workpieces and metal sheets with holes and
apertures
• Handling of ferromagnetic workpieces
Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems
Magnetic grippers SGM
container
Design

• Robust aluminum housing (2) with permanent magnet (4)
Mounting
• Clip-on, easy to replace friction ring (1) Elements
• Bistable design: the magnet settings “grip” and “release”
are maintained in case of power loss
• Standard connection threads (5) in top cover Vacuum Generators

• Mounting threads (3) for holder systems HTS on three sides
• The holder system HTS offers several options for mounting a
gripper onto the gripping apparatus; HTS...D version for interlock-
ing and mounting two grippers Valve Technology
• SGM-S with piston control for sensor recognition of piston posi-
System design magnetic grippers SGM
tion of the magnetic gripper
Switches and
container Monitoring
Our Highlights... Your Benefits...
• Safe gripping by a permanent >No electric power required
magnet
• Compact and lightweight >Minimal space requirements, Filters and Connections
design low total weight
• Easily replaceable friction ring >High shear forces can be
achieved
• Optional side connection for >Flexible mounting options Services
tooling
• Option to interlock two >Optimal for oblong work-
magnetic grippers (HTS...D) piecs
• Piston control (only in series >Recognition of piston position Contact
Magnetic grippers SGM being used for handling perforated metal sheets SGM-S in PNP or NPN version via Hall effect sensor
with IO-Link)
Index of Products

container
www.schmalz.com/sgm
