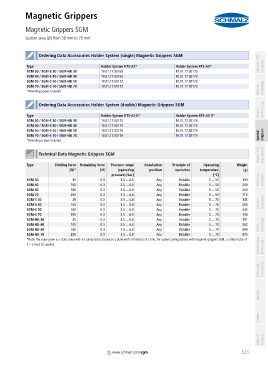

Magnetic Grippers
Magnetic Grippers SGM
PA01019111_inh_EN.pdf Suction area (Ø) from 30 mm to 70 mm PA01019111_inh_EN.pdf

container

container Ordering Data Accessories Holder System (single) Magnetic Grippers SGM Schmalz - The
Type Holder System HTS-A2* Holder System HTS-A3* Company
SGM 30 / SGM-S 30 / SGM-HD 30 10.01.17.00169 10.01.17.00170
SGM 40 / SGM-S 40 / SGM-HD 40 10.01.17.00169 10.01.17.00170
SGM 50 / SGM-S 50 / SGM-HD 50 10.01.17.00172 10.01.17.00173
SGM 70 / SGM-S 70 / SGM-HD 70 10.01.17.00172 10.01.17.00173 Knowledge
*Mounting screws included Vacuum

container
Ordering Data Accessories Holder System (double) Magnetic Grippers SGM
Vacuum Suction Cups
container
Type Holder System HTS-A2 D* Holder System HTS-A3 D*
SGM 30 / SGM-S 30 / SGM-HD 30 10.01.17.00175 10.01.17.00176
SGM 40 / SGM-S 40 / SGM-HD 40 10.01.17.00175 10.01.17.00176
SGM 50 / SGM-S 50 / SGM-HD 50 10.01.17.00178 10.01.17.00179
SGM 70 / SGM-S 70 / SGM-HD 70 10.01.17.00178 10.01.17.00179 Special Grippers
*Mounting screws included
Vacuum Grip- ping Systems
container
Technical Data Magnetic Grippers SGM
container
Type Holding force Remaining force Pressure range Installation Principle of Operating Weight
[N]* [N] (operating position operation temperature [g]
pressure) [bar] [°C]
SGM 30 35 0.3 3.5 ... 6.0 Any Bistable 5 ... 50 130 Mounting Elements
SGM 40 100 0.3 3.5 ... 6.0 Any Bistable 5 ... 50 240
SGM 50 180 0.3 3.5 ... 6.0 Any Bistable 5 ... 50 440
SGM 70 290 0.3 3.5 ... 6.0 Any Bistable 5 ... 50 715
SGM-S 30 35 0.3 3.5 ... 6.0 Any Bistable 5 ... 70 145 Generators
SGM-S 40 100 0.3 3.5 ... 6.0 Any Bistable 5 ... 70 255 Vacuum
SGM-S 50 180 0.3 3.5 ... 6.0 Any Bistable 5 ... 70 445
SGM-S 70 290 0.3 3.5 ... 6.0 Any Bistable 5 ... 70 730
SGM-HD 30 35 0.3 3.5 ... 6.0 Any Bistable 5 ... 70 191
SGM-HD 40 100 0.3 3.5 ... 6.0 Any Bistable 5 ... 70 342 Technology
SGM-HD 50 180 0.3 3.5 ... 6.0 Any Bistable 5 ... 70 594 Valve
SGM-HD 70 290 0.3 3.5 ... 6.0 Any Bistable 5 ... 70 975
Switches and Monitoring
*Note: The value given is a static value with no safety factor; based on a plate with a thickness of 2 mm. For system configurations with magnetic grippers SGM, a safety factor of
S = 3 must be applied.

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/sgm
