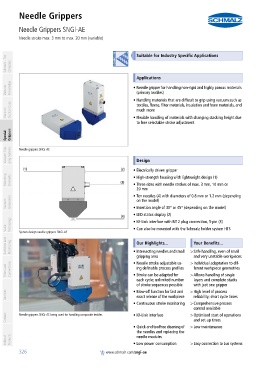

Needle Grippers
Needle Grippers SNGi-AE
PA01019111_inh_EN.pdf Needle stroke max. 3 mm to max. 20 mm (variable) PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Needle gripper for handling non-rigid and highly porous materials
(primary textiles)
• Handling materials that are difficult to grip using vacuum such as
textiles, fleece, filter materials, insulation and foam materials, and
Vacuum Suction Cups much more
• Flexible handling of materials with changing stacking height due
to free selectable stroke adjustment
Special Grippers

Vacuum Grip- ping Systems Needle grippers SNGi-AE Design

container

• Electrically driven gripper
Mounting Elements • High-strength housing with lightweight design (1)

• Three sizes with needle strokes of max. 3 mm, 10 mm or
20 mm

Vacuum Generators • Ten needles (4) with diameters of 0.8 mm or 1.2 mm (depending
on the model)
• Insertion angle of 30° or 45° (depending on the model)
• LED status display (2)

Valve Technology System design needle grippers SNGi-AE • IO-Link interface with M12 plug connection, 5-pin (3)
• Can also be mounted with the Schmalz holder system HTS

Switches and Monitoring container Our Highlights... Your Benefits...

• Intersecting needles and small
and very unstable workpieces
gripping area >Safe handling, even of small
Filters and Connections • Needle stroke adjustable us- >Individual adaptation to dif-
ferent workpiece geometries
ing definable process profiles
>Allows handling of single
• Stroke can be adapted for
each cycle; unlimited number layers and complete stacks
of stroke sequences possible with just one gripper
Services • Blow-off function for fast and >High level of process
exact release of the workpiece
reliability; short cycle times
• Continuous stroke monitoring >Comprehensive process
control available
Contact Needle grippers SNGi-AE being used for handling composite textiles • IO-Link interface >Optimized start of operations
and set-up times
• Quick and toolfree cleaning of >Low maintenance
the needles and replacing the
Index of Products • Low power consumption >Easy connection to bus systems
needle modules

326 www.schmalz.com/sngi-ae
