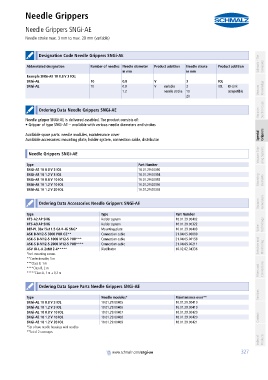

Page 327 - Schmalz - Vacuum Components

EN_Spezialgreifer.book Seite 327 Donnerstag, 25. Februar 2016 6:05 18
PA01019111_inh_EN.pdf
Needle Grippers
Needle Grippers SNGi-AE
PA01019111_inh_EN.pdf Needle stroke max. 3 mm to max. 20 mm (variable) PA01019111_inh_EN.pdf

container

container Designation Code Needle Grippers SNGi-AE Schmalz - The
Abbreviated designation Number of needles Needle diameter Product addition Needle stroke Product addition Company
in mm in mm
Example SNGi-AE 10 0.8 V 3 IOL:
SNGi-AE 10 0.8 V 3 IOL
SNGi-AE 10 0.8 V variable 3 IOL IO-Link Knowledge
1.2 needle stroke 10 compatible Vacuum
20

container
Vacuum
Ordering Data Needle Grippers SNGi-AE Suction Cups
Needle gripper SNGi-AE is delivered assebled. The product consists of:
container
• Gripper of type SNGi-AE – available with various needle diameters and strokes
Available spare parts: needle modules, maintenance cover Special Grippers
Available accessories: mounting plate, holder system, connection cable, distributor
Vacuum Grip- ping Systems
container
Needle Grippers SNGi-AE
container
Type Part Number
SNGi-AE 10 0.8 V 3 IOL 10.01.29.00390
SNGi-AE 10 1.2 V 3 IOL 10.01.29.00394
SNGi-AE 10 0.8 V 10 IOL 10.01.29.00392 Mounting Elements
SNGi-AE 10 1.2 V 10 IOL 10.01.29.00396
SNGi-AE 10 1.2 V 20 IOL 10.01.29.00393

container
Ordering Data Accessories Needle Grippers SNGi-AE Vacuum Generators
container
Type Type Part Number
HTS-A2 AP SNG Holder system 10.01.29.00402
HTS-A3 AP SNG Holder system 10.01.29.00322 Technology
BEF-PL 38x15x11.5 G1/4-IG SNG* Mounting plate 10.01.29.00403 Valve
ASK B-M12-5 5000 PUR GE** Connection cable 21.04.05.00080
ASK-S B-M12-5 1000 M12-5 PUR*** Connection cable 21.04.05.00158
ASK-S B-M12-5 2000 M12-5 PUR**** Connection cable 21.04.05.00211 Switches and
ASV IO-L-A 2xM12-4***** Distributor 10.02.02.04336 Monitoring
*Incl. mounting screws
**Confectionable, 5 m
***Class B, 1 m
****Class B, 2 m Filters and Connections
*****Class A, 1 m + 0,3 m
container
Ordering Data Spare Parts Needle Grippers SNGi-AE

container Services
Type Needle modules* Maintenance over**
SNGi-AE 10 0.8 V 3 IOL 10.01.29.00405 10.01.29.00419
SNGi-AE 10 1.2 V 3 IOL 10.01.29.00406 10.01.29.00419
SNGi-AE 10 0.8 V 10 IOL 10.01.29.00407 10.01.29.00420
SNGi-AE 10 1.2 V 10 IOL 10.01.29.00408 10.01.29.00420 Contact
SNGi-AE 10 1.2 V 20 IOL 10.01.29.00409 10.01.29.00421
*Set of two needle housings with needles
**Set of 2 coverages
Index of Products

container
container 327
www.schmalz.com/sngi-ae
