Magnetic Grippers

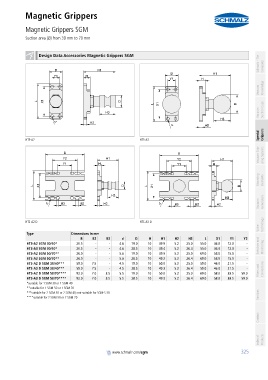

Magnetic Grippers SGM
PA01019111_inh_EN.pdf Suction area (Ø) from 30 mm to 70 mm PA01019111_inh_EN.pdf

container

container Design Data Accessories Magnetic Grippers SGM Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
HTS-A2 HTS-A3
Vacuum Grip- ping Systems
container

Mounting Elements

Vacuum Generators

HTS-A2 D HTS-A3 D Technology
Valve
container
Type Dimensions in mm
B B2 B3 d D H H1 H2 H3 L X1 Y1 Y2
HTS-A2 SGM 30/40* 20.5 - - 4.6 19.0 10 49.9 5.2 25.0 55.0 46.0 12.0 - Switches and
HTS-A3 SGM 30/40* 20.5 - - 4.6 28.5 10 49.4 5.2 26.4 55.0 46.0 12.0 - Monitoring
HTS-A2 SGM 50/70** 26.0 - - 5.6 19.0 10 49.9 5.2 25.0 69.0 58.0 15.0 -
HTS-A3 SGM 50/70** 26.0 - - 5.6 28.5 10 49.2 5.2 26.4 69.0 58.0 15.0 -
HTS-A2 D SGM 30/40*** 59.0 7.5 - 4.5 19.0 10 50.0 5.2 25.0 59.0 46.0 21.5 -
HTS-A3 D SGM 30/40*** 59.0 7.5 - 4.5 28.5 10 49.3 5.2 26.4 59.0 46.0 21.5 - Filters and Connections
HTS-A2 D SGM 50/70**** 92.0 7.0 3.5 5.5 19.0 10 50.0 5.2 25.0 69.0 58.0 33.5 59.0
HTS-A3 D SGM 50/70**** 92.0 7.0 3.5 5.5 28.5 10 49.3 5.2 26.4 69.0 58.0 33.5 59.0
*suitable for 1 SGM 30 or 1 SGM 40
**suitable for 1 SGM 50 or 1 SGM 70
***suitable for 2 SGM 30 or 2 SGM 40; not suitable for SGM-S 30 Services
****suitable for 2 SGM 50 or 2 SGM 70

Contact

Index of Products

container
www.schmalz.com/sgm
