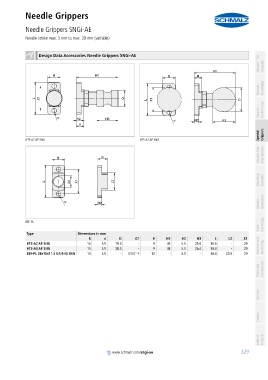

Needle Grippers
Needle Grippers SNGi-AE
PA01019111_inh_EN.pdf Needle stroke max. 3 mm to max. 20 mm (variable) PA01019111_inh_EN.pdf
container
container Design Data Accessories Needle Grippers SNGi-AE Schmalz - The Company
Vacuum Knowledge
Vacuum Suction Cups
Special Grippers
HTS-A2 AP SNG HTS-A3 AP SNG
Vacuum Grip- ping Systems
container
Mounting Elements
Vacuum Generators
BEF-PL Technology
Valve
container
Type Dimensions in mm
B d D G1 H H1 H2 H3 L L2 X1
HTS-A2 AP SNG 15 5.5 19.0 - 9 49 5.5 25.0 38.0 - 29 Switches and
HTS-A3 AP SNG 15 5.5 28.5 - 9 48 5.5 26.4 38.0 - 29 Monitoring
BEF-PL 38x15x11.5 G1/4-IG SNG 15 5.5 - G1/4"-F 12 - 5.0 - 38.0 20.0 29
