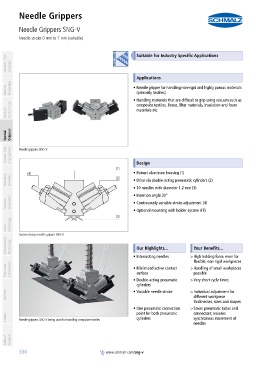

Needle Grippers
Needle Grippers SNG-V
PA01019111_inh_EN.pdf Needle stroke 0 mm to 7 mm (variable) PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Needle gripper for handling non-rigid and highly porous materials
(primarily textiles)
• Handling materials that are difficult to grip using vacuum such as
composite textiles, fleece, filter materials, insulation and foam
Vacuum Suction Cups materials etc.

Special Grippers

Vacuum Grip- ping Systems Needle grippers SNG-V Design

container

• Robust aluminum housing (1)
Mounting Elements • Drive via double-acting pneumatic cylinders (2)

• 10 needles with diameter 1.2 mm (3)
• Insertion angle 30°
Vacuum Generators • Continuously variable stroke adjustment (4)

• Optional mounting with holder system HTS

Valve Technology

System design needle gripper SNG-V
Switches and Monitoring container Our Highlights... Your Benefits...

• Intersecting needles >High holding force, even for
flexible, non-rigid workpieces
Filters and Connections • Minimized active contact >Handling of small workpieces

surface
possible
• Double-acting pneumatic >Very short cycle times
cylinders
Services • Variable needle stroke >Individual adjustment for
different workpiece
thicknesses, sizes and shapes
• One pneumatic connection >Saves pneumatic tubes and
Contact Needle grippers SNG-V being used for handling composite textiles point for both pneumatic connectors; ensures
synchronous movement of
cylinders
needles

Index of Products

334 www.schmalz.com/sng-v
