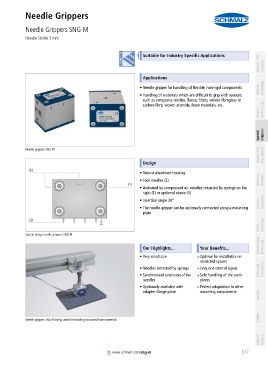

Needle Grippers
Needle Grippers SNG-M
PA01019111_inh_EN.pdf Needle Stroke 3 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Needle gripper for handling of flexible, non-rigid components Vacuum Knowledge
• Handling of materials which are difficult to grip with vacuum,
such as composite textiles, fleece, filters, woven fibreglass or
carbon-fibre, woven aramide, foam materials, etc.
Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems
Needle grippers SNG-M
container
Design

• Robust aluminum housing
Mounting
• Four needles (2) Elements
• Activated by compressed air, needles retracted by springs on the
right (1) or optional above (3)
• Insertion angle 30° Vacuum Generators

• The needle gripper can be optionally connected using a mounting
plate

Valve Technology

System design needle grippers SNG-M
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Very small size >Optimal for installation in
restricted spaces
• Needles retracted by springs >Only one control signal Filters and Connections
• Synchronised extension of the >Safe handling of the work-
needles pieces
• Optionally available with >Perfect adaptation to other
Services
adapter flange plate mounting components

Contact
Needle grippers SNG-M being used for handling structured foam materials

Index of Products

container
www.schmalz.com/sng-m
