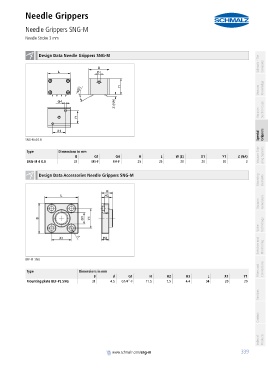

Needle Grippers
Needle Grippers SNG-M
PA01019111_inh_EN.pdf Needle Stroke 3 mm PA01019111_inh_EN.pdf

container

container Design Data Needle Grippers SNG-M Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SNG-M 4 0.8

container
Type Dimensions in mm
B G1 G4 H L W (E) X1 Y1 Z (NA) Vacuum Grip- ping Systems
SNG-M 4 0.8 32 M5-F M4-F 25 35 30 20 20 3

container
Mounting Elements
Design Data Accessories Needle Grippers SNG-M
container

Vacuum Generators

Valve Technology

Switches and Monitoring

BEF-PL SNG
Filters and
container Connections
Type Dimensions in mm
B d G1 H H2 H3 L X1 Y1
Mounting plate BEF-PL SNG 31 4.5 G1/4"-F 11.5 7.5 4.4 34 20 20

Services

Contact

Index of Products

container
www.schmalz.com/sng-m
