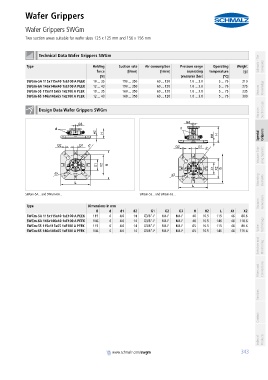

Wafer Grippers
Wafer Grippers SWGm
PA01019111_inh_EN.pdf Two suction areas suitable for wafer sizes 125 x 125 mm and 156 x 156 mm PA01019111_inh_EN.pdf

container

container Technical Data Wafer Grippers SWGm Schmalz - The
Type Holding Suction rate Air consumption Pressure range Operating Weight Company
force [l/min] [l/min] (operating temperature [g]
[N] pressure) [bar] [°C]
SWGm-5A 115x115x40 1xE100 A PEEK 10 ... 35 190 ... 350 60 ... 120 1.0 ... 3.0 5 ... 75 210
SWGm-6A 146x146x40 1xE100 A PEEK 12 ... 43 190 ... 350 60 ... 120 1.0 ... 3.0 5 ... 75 275 Knowledge
SWGm-5S 115x115x65 1xE100 A PEEK 10 ... 35 160 ... 350 60 ... 120 1.0 ... 3.0 5 ... 75 235 Vacuum
SWGm-6S 146x146x65 1xE100 A PEEK 12 ... 43 160 ... 350 60 ... 120 1.0 ... 3.0 5 ... 75 300

container
Vacuum
Design Data Wafer Grippers SWGm Suction Cups
container

Special Grippers

Vacuum Grip- ping Systems

Mounting Elements

SWGm-5A... and SWGm-6A... SWGm-5S... and SWGm-6S...
Vacuum Generators
container
Type Dimensions in mm
B d d1 d2 G1 G2 G3 H H2 L X1 X2
SWGm-5A 115x115x40 1xE100 A PEEK 115 6 4.0 14 G3/8"-F M4-F M4-F 40 10.5 115 46 80.6
SWGm-6A 146x146x40 1xE100 A PEEK 146 6 4.0 14 G3/8"-F M4-F M4-F 40 10.5 146 46 110.6
SWGm-5S 115x115x65 1xE100 A PEEK 115 6 4.0 14 G3/8"-F M4-F M4-F 65 10.5 115 46 80.6 Valve Technology
SWGm-6S 146x146x65 1xE100 A PEEK 146 6 4.0 14 G3/8"-F M4-F M4-F 65 10.5 146 46 110.6
Switches and Monitoring

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/swgm
