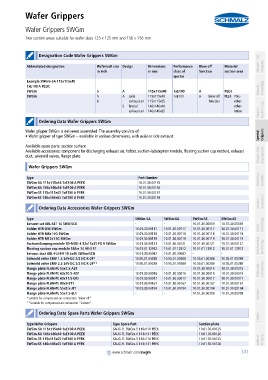

Page 341 - Schmalz - Vacuum Components

EN_Spezialgreifer.book Seite 341 Donnerstag, 25. Februar 2016 6:05 18
PA01019111_inh_EN.pdf
Wafer Grippers
Wafer Grippers SWGm
PA01019111_inh_EN.pdf Two suction areas suitable for wafer sizes 125 x 125 mm and 156 x 156 mm PA01019111_inh_EN.pdf

container

container Designation Code Wafer Grippers SWGm Schmalz - The
Abbreviated designation Wafer/cell size Design Dimensions Performance Blow off Material Company
in inch in mm class of function suction area
ejector
Example SWGm-5A 115x115x40
1xE100 A PEEK: Knowledge
SWGm 5 A 115x115x40 1xE100 A PEEK Vacuum
SWGm 5 A axial 115x115x40 1xE100 A blow off PEEK Poly-
6 axhaust air 115x115x65 function ether-
S lateral 146x146x40 ether-
Vacuum
exhaust air 146x146x65 keton Suction Cups
container
Ordering Data Wafer Grippers SWGm
Wafer gripper SWGm is delivered assembled. The assembly consists of:
container
• Wafer gripper of type SWGm – available in various dimensions, with axial or side exhaust Special Grippers
Available spare parts: suction surface
Available accessories: component for discharging exhaust air, holder, suction-/absorption module, floating suction cup module, exhaust
duct, solenoid valves, flange plate Vacuum Grip- ping Systems
container
Wafer Grippers SWGm

container
Type Part Number Mounting
SWGm-5A 115x115x40 1xE100 A PEEK 10.01.30.00135 Elements
SWGm-6A 146x146x40 1xE100 A PEEK 10.01.30.00136
SWGm-5S 115x115x65 1xE100 A PEEK 10.01.30.00137
SWGm-6S 146x146x65 1xE100 A PEEK 10.01.30.00138
Vacuum Generators
container
Ordering Data Accessories Wafer Grippers SWGm
container
Type SWGm-5A SWGm-6A SWGm-5S SWGm-6S
Exhaust set ABL-SET 14 SWG/SCG - - 10.01.30.00059 10.01.30.00059 Technology
Holder HTR-UNI SWGm 10.01.30.00117 10.01.30.00117 10.01.30.00117 10.01.30.00117 Valve
Holder HTR M8x1-IG SWGm 10.01.30.00118 10.01.30.00118 10.01.30.00118 10.01.30.00118
Holder HTR M12x1-IG SWGm 10.01.30.00119 10.01.30.00119 10.01.30.00119 10.01.30.00119
Suction/damping module SD-MOD 4 32x15x35 FG 9 SWGm 10.01.30.00121 10.01.30.00121 10.01.30.00121 10.01.30.00121 Switches and
Floating suction cup module SBSm 14 90-3 S1 10.01.01.12912 10.01.01.12912 10.01.01.12912 10.01.01.12912 Monitoring
Exhasut duct ABL-FUEHR 19.5x46 SWGm/SCG 10.01.30.00087 10.01.30.00087 - -
Solenoid valve EMV 1.5 24V-DC 3/2 NC K-2P* 10.05.01.00288 10.05.01.00288 10.05.01.00288 10.05.01.00288
Solenoid valve EMV 2.5 24V-DC 3/2 NC K-2P** 10.05.01.00289 10.05.01.00289 10.05.01.00289 10.05.01.00289
Flange plate FLAN-PL 55x7.5-AB1 - - 10.01.30.00015 10.01.30.00015 Filters and Connections
Flange plate FLAN-PL 63x10.5-AD1 10.01.30.00016 10.01.30.00016 10.01.30.00016 10.01.30.00016
Flange plate FLAN-PL 63x11.5-UNI 10.01.30.00017 10.01.30.00017 10.01.30.00017 10.01.30.00017
Flange plate FLAN-PL 80x9-ST1 10.01.30.00167 10.01.30.00167 10.01.30.00167 10.01.30.00167
Flange plate FLAN-PL 55x9.5-JP1 10.01.30.00194 10.01.30.00194 10.01.30.00194 10.01.30.00194
Flange plate FLAN-PL 55x7.5-EL1 - - 10.01.30.00208 10.01.30.00208 Services
*Suitable for compressed-air connection "Blow off"
**Suitable for compressed-air connection "Suction"
container
Ordering Data Spare Parts Wafer Grippers SWGm
Contact
container
Type Wafer Grippers Type Spare Part Suction plate
SWGm-5A 115x115x40 1xE100 A PEEK SAUG-FL SWGm-5 110x110 PEEK 10.01.30.00125
SWGm-6A 146x146x40 1xE100 A PEEK SAUG-FL SWGm-6 141x141 PEEK 10.01.30.00126
SWGm-5S 115x115x65 1xE100 A PEEK SAUG-FL SWGm-5 110x110 PEEK 10.01.30.00125 Index of Products
SWGm-6S 146x146x65 1xE100 A PEEK SAUG-FL SWGm-6 141x141 PEEK 10.01.30.00126 container

container 341
www.schmalz.com/swgm
