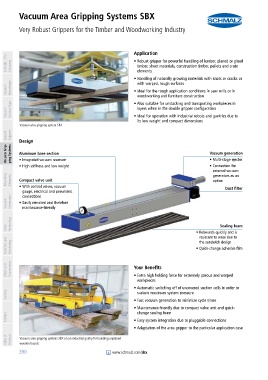

Vacuum Area Gripping Systems SBX
Very Robust Grippers for the Timber and Woodworking Industry
PA01019111_inh_EN.pdf Application PA01019111_inh_EN.pdf

Schmalz - The Company • Robust gripper for powerful handling of lumber, planed or glued
timber, sheet materials, construction timber, pallets and crate
elements
• Handling of naturally growing materials with knots or cracks or
with warped, rough surfaces
Vacuum Knowledge • Ideal for the rough application conditions in saw mills or in
woodworking and furniture construction

• Also suitable for unstacking and transporting work pieces in
Vacuum Suction Cups • Ideal for operation with industrial robots and gantries due to
layers when in the double gripper configuration

its low weight and compact dimensions
Vacuum area gripping system SBX
Special Grippers
Design
Vacuum Grip- ping Systems Aluminum base section Vacuum generation

• Multi-stage ejector
• Integrated vacuum reservoir
• High stiffness and low weight • Connection for
external vacuum
Mounting Elements Compact valve unit generators as an
option
• With control valves, vacuum Dust filter
gauge, electrical and pneumatic
connections
Vacuum Generators • Easily removed and therefore

maintenance-friendly

Valve Technology Sealing foam
• Rebounds quickly and is
resistant to wear due to
Switches and Monitoring • Quick-change adhesive film
the sandwich design

Filters and Connections Your Benefits

• Extra high holding force for extremely porous and warped
workpieces
• Automatic switching off of uncovered suction cells in order to
Services sustain maximum system pressure
• Fast vacuum generation to minimize cycle times
• Maintenance-friendly due to compact valve unit and quick-
change sealing foam
Contact • Easy system integration due to pluggable connections

• Adaptation of the area gripper to the particular application case
Index of Products Vacuum area gripping systems SBX on an industrial gantry for handling unplaned
wooden boards
