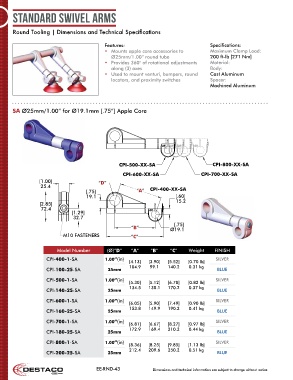

Page 43 - Destaco - Round Tooling Systems

Standard Swivel Arms CPI-500-XX-SA CPI-800-XX-SA

Round Tooling | Dimensions and Technical Specifications CPI-700-XX-SA
CPI-600-XX-SA
[1.00]
25.4 “D”
Features: CPI-400-XX-SA Specifications:
“A”
• Mounts apple core accessories to Maximum Clamp Load:
[.60]
[3.43] [1.04] Ø25mm/1.00” round tube 15.2 200 ft-lb [271 Nm]
87.1 26.3 • Provides 360° of rotational adjustments Material:
[1.29] along (3) axes Body:
32.7 • Used to mount venturi, bumpers, round Cast Aluminum
locators, and proximity switches Spacer:
[.75]
“B” Ø19.1 Machined Aluminum
M10 FASTENERS “C”

SA Ø25mm/1.00” for Ø19.1mm [.75”] Apple Core

CPI-500-XX-SA CPI-800-XX-SA

CPI-600-XX-SA CPI-700-XX-SA
[1.00] “D”
25.4
[.75] “A” CPI-400-XX-SA
19.1 [.60]
15.2
[2.85]
72.4
[1.29]
32.7
[.75]
“B” Ø19.1
M10 FASTENERS “C”

Model Number (Ø)“D” “A” “B” “C” Weight FINISH

CPI-400-1-SA 1.00”(in) [4.13] [3.90] [5.52] [0.70 lb] SILVER
104.9 99.1 140.2 0.31 kg
CPI-100-25-SA 25mm BLUE
CPI-500-1-SA 1.00”(in) SILVER
[5.30] [5.12] [6.70] [0.82 lb]
134.5 130.1 170.2 0.37 kg
CPI-140-25-SA 25mm BLUE

CPI-600-1-SA 1.00”(in) SILVER
[6.05] [5.90] [7.49] [0.90 lb]
153.8 149.9 190.2 0.41 kg
CPI-160-25-SA 25mm BLUE
CPI-700-1-SA 1.00”(in) [6.81] [6.67] [8.27] [0.97 lb] SILVER
172.9 169.4 210.2 0.44 kg
CPI-180-25-SA 25mm BLUE
CPI-800-1-SA 1.00”(in) SILVER
[8.36] [8.25] [9.85] [1.13 lb]
212.4 209.6 250.2 0.51 kg
CPI-200-25-SA 25mm BLUE

EE-RND-43 Dimensions and technical information are subject to change without notice
