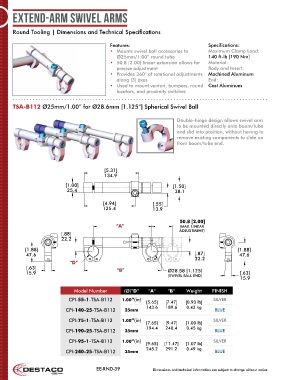

Page 39 - Destaco - Round Tooling Systems

Extend-Arm Swivel Arms

Round Tooling | Dimensions and Technical Specifications
[5.31]
134.9

[1.00] Features: [1.50] Specifications:
25.4 • Mounts swivel ball accessories to Maximum Clamp Load:
38.1
Ø25mm/1.00” round tube 140 ft-lb [190 Nm]
• 50.8 [2.00] linear extension allows for
[4.94] [.55] Material:
125.4 precise adjustment 13.9 Body and Insert:
• Provides 360° of rotational adjustments Machined Aluminum
along (3) axes 50.8[2.00] End:
• Used to mount venturi, bumpers, round Cast Aluminum
“A”
(MAX. LINEAR
locators, and proximity switches
ADJUSTMENT)
[.88]
22.2
TSA-B112 Ø25mm/1.00” for Ø28.6mm [1.125”] Spherical Swivel Ball [1.29]
[1.88] 32.7
47.6 [.60]
15.2
Double-hinge design allows swivel arm
“D” to be mounted directly onto boom/tube
[.63] [.75] [1.00]
and slid into position, without having to
15.9 “B” Ø19.1 25.4
remove existing components to slide on
from boom/tube end.

[5.31]
134.9

[1.00] [1.50]
25.4 38.1

[4.94] [.55]
125.4 13.9

50.8 [2.00]
“A” (MAX. LINEAR
ADJUSTMENT)
[.88]
22.2
[1.88] [1.88]
47.6 [.87] 47.6
22.2
“D”
[.63]
15.9 “B” Ø28.58 [1.125) [.63]
(SWIVEL BALL END)
15.9

Model Number (Ø)“D” “A” “B” Weight FINISH
CPI-55-1-TSA-B112 1.00”(in) SILVER
[5.65] [7.47] [0.93 lb]
143.6 189.6 0.42 kg
CPI-140-25-TSA-B112 25mm BLUE

CPI-75-1-TSA-B112 1.00”(in) SILVER
[7.65] [9.47] [1.00 lb]
194.4 240.4 0.45 kg
CPI-190-25-TSA-B112 25mm BLUE
CPI-95-1-TSA-B112 1.00”(in) [9.65] [11.47] [1.07 lb] SILVER
245.2 291.2 0.49 kg
CPI-240-25-TSA-B112 25mm BLUE

EE-RND-39 Dimensions and technical information are subject to change without notice
