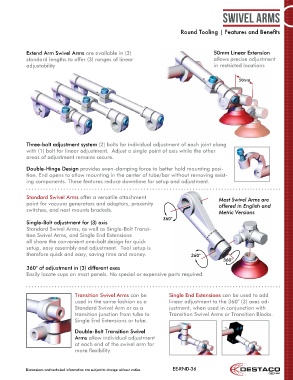

Page 36 - Destaco - Round Tooling Systems

Swivel Arms

Round Tooling | Features and Benefits

Extend Arm Swivel Arms are available in (3) 50mm Linear Extension
standard lengths to offer (3) ranges of linear allows precise adjustment
adjustability in restricted locations

50mm

Three-bolt adjustment system (2) bolts for individual adjustment of each joint along
with (1) bolt for linear adjustment. Adjust a single point of axis while the other
areas of adjustment remains secure.

Double-Hinge Design provides even-clamping force to better hold mounting posi-
tion. End opens to allow mounting in the center of tube/bar without removing exist-
ing components. These features reduce downtime for setup and adjustment.

Standard Swivel Arms offer a versatile attachment Most Swivel Arms are
point for vacuum generators and adaptors, proximity offered in English and
switches, and nest mounts brackets. Metric Versions
360°
Single-Bolt adjustment for (3) axis
Standard Swivel Arms, as well as Single-Bolt Transi-
tion Swivel Arms, and Single End Extensions
all share the convenient one-bolt design for quick
setup, easy assembly and adjustment. Tool setup is
therefore quick and easy, saving time and money. 360°
360°
360° of adjustment in (3) different axes
Easily locate cups on most panels. No special or expensive parts required.

Transition Swivel Arms can be Single End Extensions can be used to add
used in the same fashion as a linear adjustment to the 360° (3) axes ad-
Standard Swivel Arm or as a justment, when used in conjunction with
transition junction from tube to Transition Swivel Arms or Transition Blocks.
Single End Extensions or tube.

Double-Bolt Transition Swivel
Arms allow individual adjustment
at each end of the swivel arm for
more flexibility.
