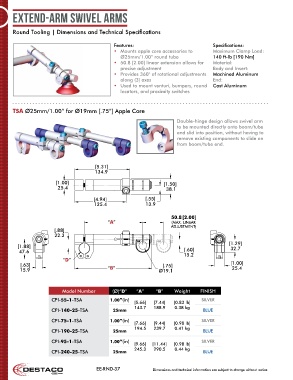

Page 37 - Destaco - Round Tooling Systems

Extend-Arm Swivel Arms

Round Tooling | Dimensions and Technical Specifications

Features: Specifications:
• Mounts apple core accessories to Maximum Clamp Load:
Ø25mm/1.00” round tube 140 ft-lb [190 Nm]
• 50.8 [2.00] linear extension allows for Material:
precise adjustment Body and Insert:
• Provides 360° of rotational adjustments Machined Aluminum
along (3) axes End:
• Used to mount venturi, bumpers, round Cast Aluminum
locators, and proximity switches

TSA Ø25mm/1.00” for Ø19mm [.75”] Apple Core

Double-hinge design allows swivel arm
to be mounted directly onto boom/tube
and slid into position, without having to
remove existing components to slide on
from boom/tube end.

[5.31]
134.9

[1.00] [1.50]
25.4 38.1

[4.94] [.55]
125.4 13.9

50.8[2.00]
“A” (MAX. LINEAR
ADJUSTMENT)
[.88]
22.2

[1.29]
[1.88] 32.7
47.6 [.60]
15.2
“D”
[.63] [.75] [1.00]
15.9 “B” Ø19.1 25.4

Model Number (Ø)“D” “A” “B” Weight FINISH
CPI-55-1-TSA 1.00”(in) [5.66] [7.44] [0.83 lb] SILVER
[5.31] 143.7 188.9 0.38 kg
CPI-140-25-TSA 134.9 25mm BLUE

[1.00]
CPI-75-1-TSA 1.00”(in) [7.66] [9.44] [1.50] SILVER
[0.90 lb]
25.4 38.1
CPI-190-25-TSA 25mm 194.5 239.7 0.41 kg BLUE
[4.94] [.55]
CPI-95-1-TSA 125.4 1.00”(in) [9.66] [0.98 lb] SILVER
13.9 [11.44]
245.3 290.5 0.44 kg
CPI-240-25-TSA 25mm BLUE
50.8 [2.00]
“A” (MAX. LINEAR
ADJUSTMENT)
[.88] EE-RND-37 Dimensions and technical information are subject to change without notice
22.2

[1.88] [1.88]
47.6 [.87] 47.6
22.2
“D”
[.63]
15.9 “B” Ø28.58 [1.125) [.63]
(SWIVEL BALL END)
15.9
