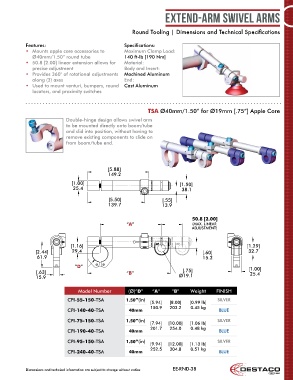

Page 38 - Destaco - Round Tooling Systems

Extend-Arm Swivel Arms

Round Tooling | Dimensions and Technical Specifications

Features: Specifications:
• Mounts apple core accessories to Maximum Clamp Load:
Ø40mm/1.50” round tube 140 ft-lb [190 Nm]
• 50.8 [2.00] linear extension allows for Material:
precise adjustment Body and Insert:
• Provides 360° of rotational adjustments Machined Aluminum
along (3) axes End:
• Used to mount venturi, bumpers, round Cast Aluminum
locators, and proximity switches

TSA Ø40mm/1.50” for Ø19mm [.75”] Apple Core
Double-hinge design allows swivel arm
to be mounted directly onto boom/tube
and slid into position, without having to
remove existing components to slide on
from boom/tube end.

[5.88]
149.2
[1.00] [1.50]
25.4 38.1

[5.50] [.55]
139.7 13.9

50.8 [2.00]
“A” (MAX. LINEAR
ADJUSTMENT)

[1.16] [1.29]
[2.44] 29.4 [.60] 32.7
61.9 15.2

“D” [1.00]
[.63] “B” [.75] 25.4
15.9 Ø19.1

Model Number (Ø)“D” “A” “B” Weight FINISH
CPI-55-150-TSA [5.88] 1.50”(in) SILVER
149.2 [5.94] [8.00] [0.99 lb]
CPI-140-40-TSA 40mm 150.9 203.2 0.45 kg BLUE
[1.00] [1.50]
25.4 38.1
CPI-75-150-TSA 1.50”(in) SILVER
[7.94] [10.00] [1.06 lb]
201.7 254.0 0.48 kg
CPI-190-40-TSA [5.50] 40mm [.55] BLUE
139.7 13.9
CPI-95-150-TSA 1.50”(in) SILVER
[9.94] [12.00] [1.13 lb]
0.51 kg
252.5 304.8 50.8 [2.00]
CPI-240-40-TSA 40mm BLUE
“A” (MAX. LINEAR
ADJUSTMENT)
Dimensions and technical information are subject to change without notice EE-RND-38
[1.16] [1.88]
[2.44] 29.4 47.6
61.9 [.87]
22.2
“D”
[.63] “B” Ø28.58 [1.125) [.63]
15.9 (SWIVEL BALL END) 15.9
