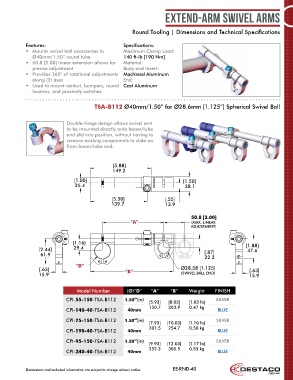

Page 40 - Destaco - Round Tooling Systems

Extend-Arm Swivel Arms

Round Tooling | Dimensions and Technical Specifications
[5.88]
149.2
Features: Specifications:
[1.00]
• Mounts swivel ball accessories to Maximum Clamp Load: [1.50]
25.4
Ø40mm/1.50” round tube 140 ft-lb [190 Nm] 38.1
• 50.8 [2.00] linear extension allows for Material:
precise adjustment [5.50] Body and Insert: [.55]
139.7
13.9
• Provides 360° of rotational adjustments Machined Aluminum
along (3) axes End:
• Used to mount venturi, bumpers, round Cast Aluminum 50.8 [2.00]
locators, and proximity switches “A” (MAX. LINEAR
ADJUSTMENT)

TSA-B112 Ø40mm/1.50” for Ø28.6mm [1.125”] Spherical Swivel Ball
[1.16] [1.29]
[2.44] 29.4 [.60] 32.7
61.9 Double-hinge design allows swivel arm 15.2
to be mounted directly onto boom/tube
“D”
and slid into position, without having to [1.00]
[.63] remove existing components to slide on [.75] 25.4
“B”
15.9 from boom/tube end. Ø19.1

[5.88]
149.2
[1.00] [1.50]
25.4 38.1

[5.50] [.55]
139.7 13.9

50.8 [2.00]
“A” (MAX. LINEAR
ADJUSTMENT)

[1.16] [1.88]
[2.44] 29.4 47.6
61.9 [.87]
22.2
“D”
[.63] “B” Ø28.58 [1.125) [.63]
15.9 (SWIVEL BALL END) 15.9

Model Number (Ø)“D” “A” “B” Weight FINISH
CPI-55-150-TSA-B112 1.50”(in) SILVER
[5.93] [8.03] [1.03 lb]
150.7 203.9 0.47 kg
CPI-140-40-TSA-B112 40mm BLUE

CPI-75-150-TSA-B112 1.50”(in) SILVER
[7.93] [10.03] [1.10 lb]
201.5 254.7 0.50 kg
CPI-190-40-TSA-B112 40mm BLUE
CPI-95-150-TSA-B112 1.50”(in) [9.93] [12.03] [1.17 lb] SILVER
252.3 305.5 0.53 kg
CPI-240-40-TSA-B112 40mm BLUE

Dimensions and technical information are subject to change without notice EE-RND-40
