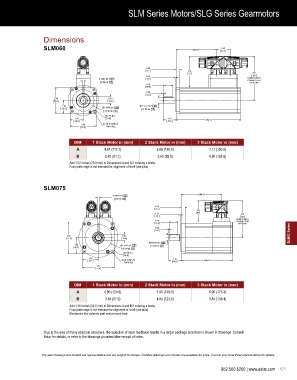

Page 16 - Exlar - SLM/SLG series brushless AC or DC servo motor/integrated servo gearmotor

SLM Series Motors/SLG Series Gearmotors

Dimensions
SLM060 DIM "B" 1.25
31.7

0.34
8.7 2.8
72 4.0
0.10 102
0.1969 h9 +0.0000 2.5 VARIES WITH
- 0.0012
CONNECTOR
5.00 h9 0.00 OPTIONS
-0.03
0.79
20.0
0.08
2.0
2.36 0.63
60.0 15.9
1.18 1.9685 g6 -0.0004 0.5512 h6 +0.0000
- 0.0004
30.0 -0.0010 14.00 h6 0.00
50.00 g6 -0.01 -0.01
-0.03
2.75 B.C.
1.18 70.0 1.18 DIM "A"
30.0 30.0
2.36 4X 0.22 5.6
60.0 THRU ALL
DIM 1 Stack Motor in (mm) 2 Stack Motor in (mm) 3 Stack Motor in (mm)
A 4.61 (117.1) 5.86 (148.9) 7.11 (180.6)
B 2.40 (61.1) 3.65 (92.8) 4.90 (124.6)
Add 1.02 inches (25.9 mm) to Dimensions A and B if ordering a brake.
Face plate edge is not intended for alignment of shaft (use pilot)
SLM075

0.1969 h9 +0.0000 DIM "B"
-0.0012
5.00 h9 0.00
-0.03
0.38
9.5
2.0
0.11 51 3.5
2.8 89
VARIES WITH
0.79 CONNECTOR
20.0 OPTIONS
0.08
2.0
3.05 0.63 SLM/G Series
77.4 15.9
0.5512 h6 +0.0000
- 0.0004
1.52 2.5591 g6 -0.0004 14.00 h6 0.00
-0.0011
38.7 65.00 g6 -0.01 -0.01
-0.03
3.74 B.C.
95.0
1.52 1.18
38.7 4X 0.26 6.5 30.0 DIM "A"
THRU ALL
3.05
77.4
DIM 1 Stack Motor in (mm) 2 Stack Motor in (mm) 3 Stack Motor in (mm)
A 4.90 (124.5) 5.90 (149.9) 6.90 (175.3)
B 3.84 (97.6) 4.84 (123.0) 5.84 (148.4)
Add 1.28 inches (32.5 mm) to Dimensions A and B if ordering a brake.
Face plate edge is not intended for alignment of shaft (use pilot)
Electronics box extends past motor mount face.
Due to the size of many absolute encoders, the selection of such feedback results in a larger package size than is shown in drawings. Consult
Exlar for details, or refer to the drawings provided after receipt of order.

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
