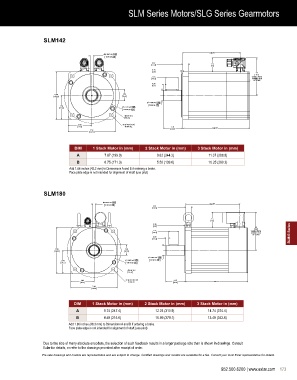

SLM Series Motors/SLG Series Gearmotors

SLM142

DIM "B"
0.3937 h9 +0.0000
- 0.0014
10.00 h9 0.00
-0.04
0.67 1.6
17.0 41
0.14
3.5
4.4
112
1.57 VARIES WITH
40.0 CONNECTOR
OPTIONS
0.20
5.1
5.59 1.38
142.0 35.0
1.2598 h6 +0.0000
-0.0006
2.80 5.1181 g6 -0.0006 32.00 h6 0.00
-0.02
71.0 -0.0016
130.00 g6 -0.015
-0.041
6.50 B.C.
165.0
2.80 4X 0.43 11.0
71.0 THRU ALL 2.28
58.0 DIM "A"
5.59
142.0
DIM 1 Stack Motor in (mm) 2 Stack Motor in (mm) 3 Stack Motor in (mm)
A 7.87 (199.9) 9.62 (244.3) 11.37 (288.8)
B 6.75 (171.3) 5.50 (139.6) 10.25 (260.2)
Add 1.66 inches (42.2 mm) to Dimensions A and B if ordering a brake.
Face plate edge is not intended for alignment of shaft (use pilot)
SLM180
0.3937 h9 +0.0000
-0.0014
10.00 h9 0.00 0.81 DIM "B"
-0.04
20.5
2.5
63
0.16
4.0
6.0
153
1.57 VARIES WITH
40.0 CONNECTOR SLM/G Series
OPTIONS
0.45
11.4
7.28 1.61
184.9 41.0
1.4961 h6 +0.0000
-0.0006
3.64 7.0866 g6 -0.0006 38.00 h6 0.00
-0.02
-0.0016
92.5 180.00 g6 -0.02
-0.04
8.46 B.C.
215.0
3.64 4X 0.51 13.0 3.15 DIM "A"
92.5 THRU ALL 80.0
7.28
184.9
DIM 1 Stack Motor in (mm) 2 Stack Motor in (mm) 3 Stack Motor in (mm)
A 9.74 (247.4) 12.24 (310.9) 14.74 (374.4)
B 8.49 (215.6) 10.99 (279.1) 13.49 (342.6)
Add 1.90 inches (48.3 mm) to Dimensions A and B if ordering a brake.
Face plate edge is not intended for alignment of shaft (use pilot)
Due to the size of many absolute encoders, the selection of such feedback results in a larger package size than is shown in drawings. Consult
Exlar for details, or refer to the drawings provided after receipt of order.
Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
