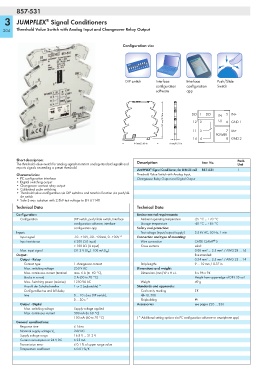

Page 206 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

857-531

3 JUMPFLEX Signal Conditioners
®
204 Threshold Value Switch with Analog Input and Changeover Relay Output

Configuration via:

DIP switch Interface Interface Push/Slide
configuration configuration Switch
software app

<_________ 96 mm/3.76 in _________> DO 1 DO IN 5 6 IN+

U,I
12 2
GND 1

14 4
GND 2
_> 11 3 POWER 7 8 Us+
____________
_>
6 mm/0.23 in
<_________ 94 mm/3.68 in _________>
Short description: Pack.
The threshold value switch for analog signals monitors analog standard signals and Description Item No. Unit
reports signals exceeding a preset threshold.
®
JUMPFLEX Signal Conditioner, for DIN 35 rail 857-531 1
Characteristics: Threshold Value Switch with Analog Input,
• PC configuration interface Changeover Relay Output and Digital Output
• Digital switching output
• Changeover contact relay output
• Calibrated scale switching
• Threshold value configuration via DIP switches and teach-in function via push/sli-
de switch
• Safe 3-way isolation with 2.5kV test voltage to EN 61140
Technical Data Technical Data
Configuration: Environmental requirements:
Configuration DIP switch, push/slide switch, interface Ambient operating temperature -25 °C ... +70 °C
configuration software, interface Storage temperature -40 °C ... +85 °C
configuration app Safety and protection:
Input: Test voltage (input/output/supply) 2.5 kV AC, 50 Hz, 1 min
Input signal -10...+10V, -20...+20mA, 0...+30V * Connection and type of mounting:
®
Input resistance ≤ 200 Ω (I input) Wire connection CAGE CLAMP S
> 100 kΩ (U input) Cross sections solid:
Max. input signal (31.2 V (U IN ) 100 mA (I IN ) 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
Output: fine-stranded:
Output - Relay 0.34 mm² ... 2.5 mm² / AWG 22 ... 14
Contact type 1 changeover contact Strip lengths 9 ... 10 mm / 0.37 in
Max. switching voltage 250 V AC Dimensions and weight:
Max. continuous current (terminal max. 6 A (to 60 °C), Dimensions (mm) W x H x L 6 x 96 x 94
blocks in a row) 2 A (60 to 70 °C) Height from upper-edge of DIN 35 rail
Max. Switching power (resistive) 1250 VA AC Weight 49 g
Anzahl der Schaltschwellen 1 or 2 (adjustable) * Standards and approvals:
Configurable rise and fall delay Conformity marking 1
time 0 ... 10 s (via DIP switch), r UL 508
0 ... 30 s * Shipbuilding g
Output - Digital Accessories see pages 226 … 236
Max. switching voltage Supply voltage applied
Max. continuous current 500 mA (to 60 °C)
100 mA (60 to 70 °C) ( * Additional setting options via PC configuration software or smartphone app)
General specifications:
Response time ≤ 16ms
24V DC
Nominal supply voltage V S
Supply voltage range 16.8 V ... 31.2 V
Current consumption at 24 V DC ≤ 25 mA
Transmission error ≤ 0.1 % of upper range value
Temperature coefficient ≤ 0.01 %/K
