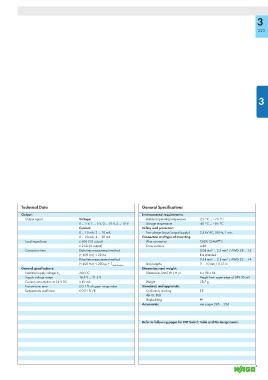

Page 225 - Wagp_InterfaceElectronic_Volume4_2015_US.pdf

3

223

3

Technical Data General Specifications
Output: Environmental requirements:
Output signal Voltage: Ambient operating temperature -25 °C ... +70 °C
0 ... 5 V, 1 ... 5 V, 0 ... 10 V, 2 ... 10 V Storage temperature -40 °C ... +85 °C
Current: Safety and protection:
0 ... 10 mA, 2 ... 10 mA, Test voltage (input/output/supply) 2.5 kV AC, 50 Hz, 1 min.
0 ... 20 mA, 4 ... 20 mA Connection and type of mounting:
®
Load impedance ≤ 600 Ω (I output) Wire connection CAGE CLAMP S
≥ 2 kΩ (U output) Cross sections solid:
Conversion time Gate time measurement method 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
(> 400 Hz): < 20 ms fine-stranded:
Pulse time measurement method 0.34 mm² ... 2.5 mm² / AWG 22 ... 14
Strip lengths 9 ... 10 mm / 0.37 in
(< 400 Hz): < 200 μs + T Cycle duration
General specifications: Dimensions and weight:
24V DC Dimensions (mm) W x H x L 6 x 96 x 94
Nominal supply voltage V S
Supply voltage range 16.8 V ... 31.2 V Height from upper-edge of DIN 35 rail
Current consumption at 24 V DC ≤ 40 mA Weight 38.7 g
Transmission error ≤ 0.1 % of upper range value Standards and approvals:
Temperature coefficient ≤ 0.01 % /K Conformity marking 1
r UL 508
Shipbuilding g
Accessories see pages 226 … 236

Refer to following pages for DIP Switch Table and Pin Assignments.
